RCJT1 TKN

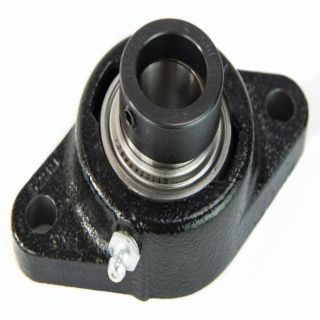

Picture of RCJT1 TKN
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
RCJT1
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$182.34 / EA

Description

Brand Name

Fafnir®

Type

Industrial Normal Duty

Description

Timken® ball bearing housed units feature a wide-inner-ring ball bearing for additional shaft support. Designed for mounting on straight shafts with a slip fit, these housed units are available in an extensive array of types and sizes to accommodate many industrial applications.
Timken® Fafnir®, RCJT1, Flange Mount Ball Bearing Unit, Industrial Normal Duty, Series: RCJT, 1.001 in Bore, 3-29/32 in Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 4-7/8 in Overall Length/Diameter, 1.839 in Overall Depth, 1.839 in Overall Height, Eccentric Locking Device, Steel Bearing, 3150 lb Dynamic/1760 lb Static Load, 5440 rpm Maximum, -30 to 275 deg F, Uncoated

Application

Agriculture, Food Processing, Fans, Blowers and Conveyors

Features

  • The cartridges are the same basic design as RCJ, TCJ, and LCJ types, except they have two bolt holes instead of four
  • The RCJT cartridge is equipped with G-KRRB (R-seal) wide-inner-ring ball bearings
  • The units are factory pre-lubricated

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:3-29/32 in
Bore Diameter:1.001 in
Finish:Uncoated
Flange Mounting Type:2-Bolt
Load Capacity:3150 lb Dynamic/1760 lb Static
Locking Device:Eccentric
Maximum Speed:5440 rpm
Overall Depth:1.839 in
Overall Height:1.839 in
Overall Length/Diameter:4-7/8 in
Series:RCJT
Temperature Rating:-30 to 275 deg F

Products Specifications

Brand Name
Timken
Measuring Units
Inch
Shaft Diameter
1 in
