RCJTC 3/4 TKN

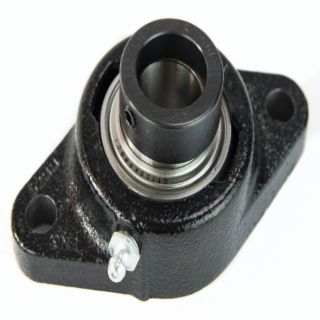

Picture of RCJTC 3/4 TKN
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
RCJTC 3/4
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$180.97 / EA

Description

Brand Name

Fafnir®

Type

Industrial Normal Duty

Description

Timken® ball bearing housed units feature a wide-inner-ring ball bearing for additional shaft support. Designed for mounting on straight shafts with a slip fit, these housed units are available in an extensive array of types and sizes to accommodate many industrial applications.
Timken® Fafnir®, RCJTC 3/4, Flange Mount Ball Bearing Unit, Industrial Normal Duty, Series: RCJTC, 3/4 in Bore, 3-17/32 in Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 4-13/32 in Overall Length/Diameter, 1.502 in Overall Depth, 1.299 in Overall Height, Eccentric Locking Device, Steel Bearing, 3190 lb Dynamic/1480 lb Static Load, 6270 rpm Maximum, -30 to 275 deg F, Uncoated

Application

Agriculture, Food Processing, Fans, Blowers and Conveyors

Features

  • This series has the same basic design as RCJT, except it uses the concentric-collar rather than the self-locking eccentric collar as the shaft-locking device
  • All units are equipped with GC-KRRB wide-inner-ring concentric-collars
  • The spherical outside diameter of the bearings is mounted in corresponding machined housing seats to provide the initial self-alignment
  • The bolt-hole spacing dimensions are interchangeable with the RCJT series and most competitive units
  • The units are factory pre-lubricated
  • A grease fitting is provided for relubrication

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:3-17/32 in
Bore Diameter:3/4 in
Finish:Uncoated
Flange Mounting Type:2-Bolt
Load Capacity:3190 lb Dynamic/1480 lb Static
Locking Device:Eccentric
Maximum Speed:6270 rpm
Overall Depth:1.502 in
Overall Height:1.299 in
Overall Length/Diameter:4-13/32 in
Series:RCJTC
Temperature Rating:-30 to 275 deg F

Products Specifications

Brand Name
Timken
Measuring Units
Inch
Shaft Diameter
3/4 in
