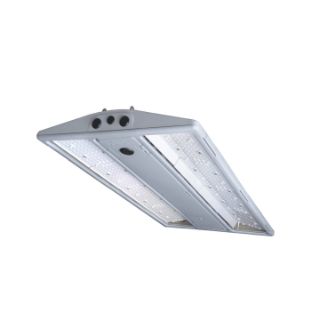

RHU4MC2FDC3NGN DLG

Product Details

Manufacturer part number:
RHU4MC2FDC3NGN
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Reliant

Type

Rectangular

Description

Introducing the Reliantâ„¢ high bay - designed for superior energy efficiency and value in warehouses, light manufacturing and other large indoor spaces. Built with the same uncompromising standards for reliability found in over 1.5 million Dialight fixtures already in place around the world. Reliantâ„¢ is backed by Dialight's 10-year warranty, among the industry's longest, best-in-class protections. This polycarbonate powerhouse features UL 1598 certification and is available now in North America.
Reliant High Bay Fixture, Rectangular, Series: Mid-Range, 100 to 277 VAC, 199 W Fixture, LED Lamp, 160 Lumens/W, 10 years Average Life, Cool White Light, 5000 K Color, 80 CRI, 0 to 10 V Dimmable Ballast, Clear Polycarbonate Lens, 29400 Lumens, 12 ft 18 to 3 AWG STOOW Cord, Surface/Chain Mount, Halogen-Free Polycarbonate Housing, Gray Housing, 36.5 in L x 20.1 in W x 3.59 in H

Application

Warehouses and Indoor Light Industrial Applications

Standards

CSA C22.2 No. 250.0 | cETLus Intertek | Damp Location | DLC Standard & Premium | L90 rated for >100000 hr at 25 deg C | Title 24 Compliant | UL 1598/A | UL 8750

Features

  • Operating temperature range of -40 deg F to 131 deg F (standard model)
  • All units controls enabled
  • M - Medium beam distribution
  • 2 - 100 to 277 VAC, 6 kV surge protection
  • C - Single configuration

Specifications

Average Life:10 years
Ballast Type:0 to 10 V Dimmable
Color Rendering Index (CRI):80
Color Temperature:5000 K
Cord Type:12 ft 18 to 3 AWG STOOW
Country of Origin:MX
Dimensions:36.5 in L x 20.1 in W x 3.59 in H
Fixture Wattage:199 W
Housing Finish:Gray
Housing Material:Halogen-Free Polycarbonate
Lamp Type:LED
Lens Type:Clear Polycarbonate
Light Color:Cool White
Light Output:160 Lumens/W
Lumens:29400 Lumens
Mounting Type:Surface/Chain
Series:Mid-Range
Voltage Rating:100 to 277 VAC
