RM0130P20E HMD

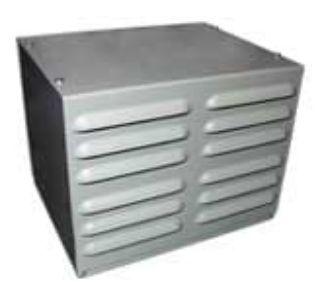

Picture of RM0130P20E HMD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hammond Power Solutions
Manufacturer part number:
RM0130P20E
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

HPS

Type

Enclosed

Description

HPS Line Reactor, Enclosed, Series: RM Series, 240 to 600 VAC, 130 A, 50 hp, 100 hp, 125 hp, 3 ph, 0.2 mH Inductance, 3 and 5 % Impedance, 12 in Height, 14 in Width, 14 in Depth, NEMA 1 Enclosure, Floor Mounting, Iron, Gray, Baked Enamel Coated

Application

For both the input and output side of variable speed drives including insulated gate bipolar transistor (IGBT) type inverters

Standards

AINS | CSA File #LR3902 | CE Certified | IEC 61558-2-20:2000 | RoHS Compliant | UL File #E61431

Features

  • Attenuate voltage and current transients to reduce voltage notching
  • Improving true power factor
  • Mitigate drive nuisance tripping
  • Minimize harmonic current
  • On output, reduce the motor temperature and audible noise
  • Enhance the overall performance, life expectancy and system efficiency
  • Mitigate motor bearing failures
  • HPS reactors are designed for both the input and output side of variable speed drives including insulated gate bipolar transistor (IGBT) type inverters
  • Nominal inductance +/-10% at rated current, 95% of nominal inductance at 150% rated current and 50% of nominal inductance at 350% of rated current
  • 80 deg C for 130 deg C temperature insulation class system
  • 60 Hz frequency
  • Terminal blocks are provided on select model ranges and terminal pads are supplied on higher current ratings
  • Meets NEMA ST-20 standards sound level
  • Wall and ceiling mounting available on enclosure style N1, N2, NH5 and NH6
  • 115 W power loss
  • 10 in W x 10-1/2 in D mounting size
  • 0.188 in mounting hole/slot
  • N2 case style

Specifications

Amperage Rating:130 A
Color:Gray
Depth:14 in
Enclosure Type:NEMA 1
Finish:Baked Enamel Coated
Height:12 in
Horsepower:50 hp, 100 hp, 125 hp
Impedance:3 and 5 %
Inductance:0.2 mH
Material:Iron
Mounting Type:Floor
Phase:3
Series:RM Series
Voltage Rating:240 to 600 VAC
Width:14 in
