RM0200P11 HMD

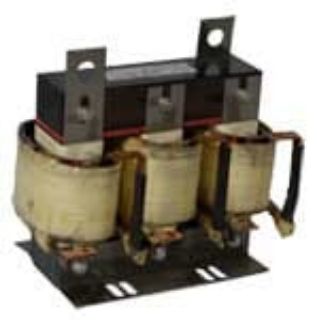

Picture of RM0200P11 HMD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hammond Power Solutions
Manufacturer part number:
RM0200P11
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

HPS

Type

Core and Coil

Description

HPS Line Reactor, Core and Coil, Series: RM Series, 240 to 480 VAC, 200 A, 75 hp, 150 hp, 3 ph, 0.11 mH Inductance, 3 and 5 % Impedance, 8.35 in Height, 10-1/2 in Width, 7.53 in Depth, Floor Mounting, Iron

Application

For both the input and output side of variable speed drives including insulated gate bipolar transistor (IGBT) type inverters

Standards

AINS | CSA File #LR3902 | CE Certified | IEC 61558-2-20:2000 | RoHS Compliant | UL File #E61431

Features

  • Attenuate voltage and current transients to reduce voltage notching
  • Improving true power factor
  • Mitigate drive nuisance tripping
  • Minimize harmonic current
  • On output, reduce the motor temperature and audible noise
  • Enhance the overall performance, life expectancy and system efficiency
  • Mitigate motor bearing failures
  • HPS reactors are designed for both the input and output side of variable speed drives including insulated gate bipolar transistor (IGBT) type inverters
  • Nominal inductance +/-10% at rated current, 95% of nominal inductance at 150% rated current and 50% of nominal inductance at 350% of rated current
  • 200 deg C temperature class up to 160 A and 220 deg C temperature class over 160 A insulation system
  • 60 Hz frequency
  • Terminal blocks are provided on select model ranges and terminal pads are supplied on higher current ratings
  • Meets NEMA ST-20 standards sound level
  • Wall and ceiling mounting available on units up to 200 lb
  • 114 W power loss
  • 3.6/4.8 in W x 4.48 in D mounting size
  • 0.44 x 1.25 in mounting hole/slot

Specifications

Amperage Rating:200 A
Depth:7.53 in
Height:8.35 in
Horsepower:75 hp, 150 hp
Impedance:3 and 5 %
Inductance:0.11 mH
Material:Iron
Mounting Type:Floor
Phase:3
Series:RM Series
Voltage Rating:240 to 480 VAC
Width:10-1/2 in
