RM0400U82E HMD

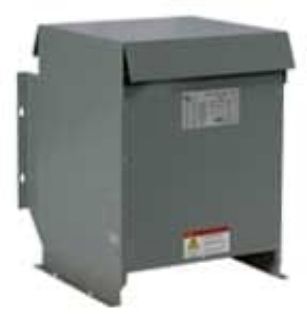

Picture of RM0400U82E HMD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hammond Power Solutions
Manufacturer part number:
RM0400U82E
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

HPS

Type

Enclosed

Description

HPS Line Reactor, Enclosed, Series: RM Series, 525 to 660 VAC, 400 A, 350 hp, 400 hp, 500 hp, 3 ph, 0.082 mH Inductance, 3 % Impedance, 28-3/4 in Height, 23.9 in Width, 25 in Depth, NEMA 1 Enclosure, Floor Mounting, Iron, Gray, Baked Enamel Coated

Application

For both the input and output side of variable speed drives including insulated gate bipolar transistor (IGBT) type inverters

Standards

AINS | CSA File #LR3902 | CE Certified | IEC 61558-2-20:2000 | RoHS Compliant | UL File #E61431

Features

  • Attenuate voltage and current transients to reduce voltage notching
  • Improving true power factor
  • Mitigate drive nuisance tripping
  • Minimize harmonic current
  • On output, reduce the motor temperature and audible noise
  • Enhance the overall performance, life expectancy and system efficiency
  • Mitigate motor bearing failures
  • HPS reactors are designed for both the input and output side of variable speed drives including insulated gate bipolar transistor (IGBT) type inverters
  • Nominal inductance +/-10% at rated current, 95% of nominal inductance at 150% rated current and 50% of nominal inductance at 350% of rated current
  • 80 deg C for 130 deg C temperature insulation class system
  • 60 Hz frequency
  • Terminal blocks are provided on select model ranges and terminal pads are supplied on higher current ratings
  • Meets NEMA ST-20 standards sound level
  • Wall and ceiling mounting available on enclosure style N1, N2, NH5 and NH6
  • 210 W power loss
  • 22-3/4 in W x 9 in D mounting size
  • 0.56 in mounting hole/slot
  • NH6 case style

Specifications

Amperage Rating:400 A
Color:Gray
Depth:25 in
Enclosure Type:NEMA 1
Finish:Baked Enamel Coated
Height:28-3/4 in
Horsepower:350 hp, 400 hp, 500 hp
Impedance:3 %
Inductance:0.082 mH
Material:Iron
Mounting Type:Floor
Phase:3
Series:RM Series
Voltage Rating:525 to 660 VAC
Width:23.9 in
