RM1000U11 HMD

Name: RM1000U11 HMD
Brand: Hammond Power Solutions
SKU: RM1000U11 HMD
Availability: OutOfStock

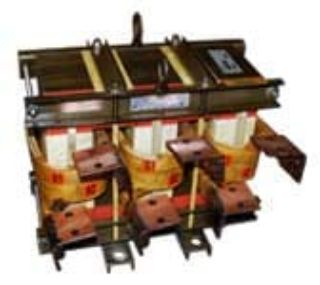

Actual Product May Vary From Image

Product Details

Manufacturer:

Hammond Power Solutions

Manufacturer part number:

RM1000U11

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

HPS

Type

Core and Coil

Description

HPS Line Reactor, Core and Coil, Series: RM Series, 240 VAC, 1000 A, 400 hp, 3 ph, 0.011 mH Inductance, 3 % Impedance, 18 in Height, 18 in Width, 12-1/2 in Depth, Floor Mounting, Iron

Application

For both the input and output side of variable speed drives including insulated gate bipolar transistor (IGBT) type inverters

Standards

Features

Attenuate voltage and current transients to reduce voltage notching
Improving true power factor
Mitigate drive nuisance tripping
Minimize harmonic current
On output, reduce the motor temperature and audible noise
Enhance the overall performance, life expectancy and system efficiency
Mitigate motor bearing failures
HPS reactors are designed for both the input and output side of variable speed drives including insulated gate bipolar transistor (IGBT) type inverters
Nominal inductance +/-10% at rated current, 95% of nominal inductance at 150% rated current and 50% of nominal inductance at 350% of rated current
200 deg C temperature class up to 160 A and 220 deg C temperature class over 160 A insulation system
60 Hz frequency
Terminal blocks are provided on select model ranges and terminal pads are supplied on higher current ratings
Meets NEMA ST-20 standards sound level
Wall and ceiling mounting available on units up to 200 lb
179 W power loss
6 in W x 9-1/4 in D mounting size
0.75 in mounting hole/slot

Specifications

Amperage Rating:	1000 A
Depth:	12-1/2 in
Height:	18 in
Horsepower:	400 hp
Impedance:	3 %
Inductance:	0.011 mH
Material:	Iron
Mounting Type:	Floor
Phase:	3
Series:	RM Series
Voltage Rating:	240 VAC
Width:	18 in
