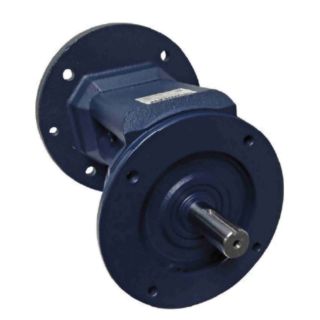

RM3Q-4.045-180TC-250TC HUB

Name: RM3Q-4.045-180TC-250TC HUB
Brand: Hub City
SKU: RM3Q-4.045-180TC-250TC HUB
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City

Manufacturer part number:

0270-03078

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Parallel Reducer

Description

Hub City® Helical Ratio Multiplier, Parallel Reducer, Series: RM3, 4.045:1 Gear Ratio, 11.35 hp Input, C-Face Quill Input, C-Face Shaft Output, 1-1/8 in Dia Input, 1-5/8 in Dia Output, 433 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 1621 in-lb Output, 2.874 in Centre Distance, Synthetic Oil Lubrication, Surface Mount, Cast Iron, 11.51 in L x 9.5 in W x 11.624 in H

Standards

USDA H1 Compliant

Features

Can be used as reducer or increaser
Use between gear drive and motor to gain additional gear reduction
Double lip seals
Factory lubricated with food-grade synthetic lubricant - USDA class H1 approved

Specifications

Centre Distance:	2.874 in
Dimensions:	11.51 in L x 9.5 in W x 11.624 in H
Gear Ratio:	4.045:1
Horsepower:	11.35 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	1-1/8 in Dia
Input Type:	C-Face Quill
Lubrication Type:	Synthetic Oil
Material:	Cast Iron
Mounting Type:	Surface
Output Maximum Speed:	433 rpm
Output Size:	1-5/8 in Dia
Output Type:	C-Face Shaft
Series:	RM3
Torque Rating:	1621 in-lb Output
