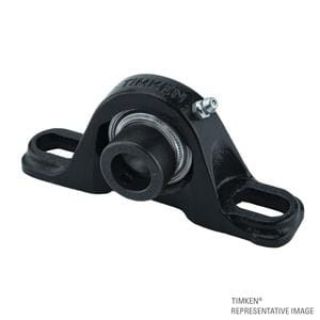

Actual Product May Vary From Image

RSA1 7/16 TKN

Name: RSA1 7/16 TKN
Brand: Timken
SKU: RSA1 7/16 TKN
Price: 457.33 USD
Availability: InStock

Ball Pillow Block Housed Unit

Manufacturer: Timken

Manufacturer part number: RSA1 7/16

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
2	0
Loading...

$457.33

Qty:

Product Details

Brand Name

Timken® Fafnir®

Description

Designed to maximize performance, Timken® Fafnir® ball bearing housed units combine the bearing, housing, seal and locking system into one device for easy installation and operation. Timken Fafnir housed units feature specialized product lines to solve specific application concerns. Our problem solver series helps prevent downtime by using superior technology to keep equipment running efficiently and improve your bottom line

Ball Pillow Block Housed Unit | 36.52 mm 1.44 in Bore 71.99 mm 2.83 in OD

Features

RSA series is equipped with G-KRRB wide inner ring ball bearings
Pillow blocks are prelubricated and ready for immediate use
A grease fitting is provided for relubrication if required
All units are supplied with a self-locking collar

Specifications

Bearing Material:	Steel
Bearing Type:	Wide Inner Ring Ball Bearing Insert
Bolt Center - in:	6.6259842519685
Bolt Center - mm:	168.3
Bolt Size - in:	0.62992125984252
Bolt Size - mm:	16
Bore Size (ID) - in:	1.43775
Bore Size (ID) - mm:	36.51885
Bore Type:	Round
Component (I/R; O/R assembly):	Assembly
Duty Type:	Standard duty
Dynamic Load Rating:	6400
Housing Material:	Cast Iron
Housing Style:	Pillow block
Inner Ring Width - Inch:	1.48205
Inner Ring Width - Millimeter:	37.64407
Insert Part Number:	N/P
Internal Clearance:	P(C3)
Load Rating UOM:	LB
Locking Type:	Eccentric
Lubrication Hole/Groove:	YES
Manufacturer Product Page Link:	https://www.timken.com/products/timken-engineered-bearings/housed-units/
Material - Rolling Elements (Ball or Roller):	STEEL
Outer Diameter - in:	2.83435
Outer Diameter - mm:	71.99249
Outer Diameter Type:	Spherical
Outer Ring Width - Inch:	0.74565
Outer Ring Width - Millimeter:	18.93951
Overall Height - in:	4.3740157480315
Overall Height - mm:	111.1
Overall Length - in:	8.25196850393701
Overall Length - mm:	209.6
Overall Width - in:	2.59375
Overall Width - mm:	65.88125
Precision class:	ISO Normal/ABEC1
Relubricatable:	YES
Retainer Material:	Nylon
Retainer Type:	One Piece Molded Nylon
Rolling Element:	Ball
Shaft Centerline - in:	2.3751968503937
Shaft Centerline - mm:	60.33
Static Load Rating:	3440
