S1000 THO

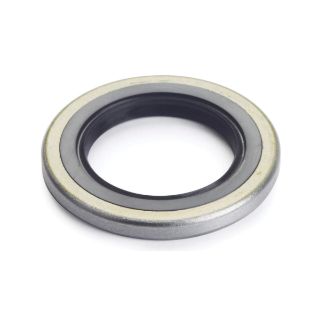

Thomson® S1000 Double-Acting External Standard Linear Shaft Seal, 1 in ID x 1.567 in OD, 0.187 in W, Steel
Manufacturer: Thomson Industries
Manufacturer part number: S1000
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$9.62

Product Details

Brand Name

Thomson®

Type

Double-Acting External Standard

Description

Thomson® Linear Shaft Seal, Double-Acting External Standard, 1 in Inside Dia, 1.567 in Outside Dia, 0.187 in Width, 250 deg F, Steel

Application

For Super Smart Ball Bushing® SSU16, Super Ball Bushing® SUPER16 and Ball Bushing® A162536, XA162536 precision steel closed type linear bearings

Features

Sizes 1-1/2 in and above use spring fingers to reinforce sealing capability, which could add to seal drag

Specifications

Inside Diameter:1 in
Material:Steel
Outside Diameter:1.567 in
Temperature Rating:250 deg F
Width:0.187 in
