S1216BS 5/8 MSG

Name: S1216BS 5/8 MSG
Brand: Martin Sprocket & Gear
SKU: S1216BS 5/8 MSG
Price: 60.08 USD
Availability: OutOfStock

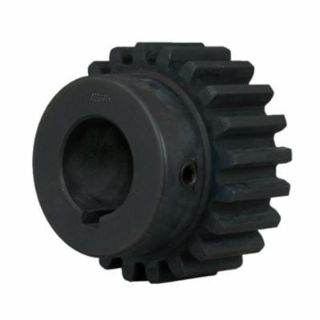

Actual Product May Vary From Image

Product Details

Manufacturer:

Martin Sprocket & Gear

Manufacturer part number:

S1216BS 5/8

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

$60.08 / EA

Description

Brand Name

Martin

Type

Bored-to-Size External Tooth

Description

Martin stock spur gears are available in five different styles. Steel gears are furnished in plain style and plain style with hub. Cast gears are furnished, plain with hub, web with lightening holes, and spoke. Cast gears are machined on all operating surfaces. Martin cast gears are cast with a larger hub to provide extra strength and to allow for larger bores. Spur gears are stocked in both 14-1/2 and 20 deg pressure angles.

Martin Stock Spur Gear, Bored-to-Size External Tooth, 5/8 in Bore Dia, 1-1/2 in Outside Dia, 16 Teeth, 12 Diametral Pitch, 1.333 in, 3/4 in Face Width, Type B, 1.063 in Hub Dia, 1/2 in Hub Projection, 1-1/4 in Overall Length, 14.5 deg Pressure Angle, 0.1875 x 0.0938 in Keyway, Steel

Features

Manufactured of high carbon steel
Precise machining and processes ensure consistent finish and high quality
Commercial Class Gear. AGMA 6-8

Specifications

Bore Diameter:	5/8 in
Country of Origin:	US
Diametral Pitch:	12
Face Width:	3/4 in
Hub Diameter:	1.063 in
Hub Projection:	1/2 in
Hub Type:	Type B
Keyway Size:	0.1875 x 0.0938 in
Material:	Steel
Number of Teeth:	16
Outside Diameter:	1-1/2 in
Overall Length:	1-1/4 in
Pitch Diameter:	1.333 in
Pressure Angle:	14.5 deg
