S1220BS 3/4 MSG

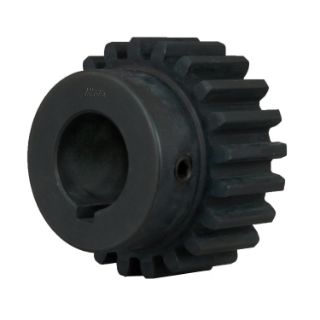

Picture of S1220BS 3/4 MSG
Actual Product May Vary From Image

Product Details

Manufacturer:
Martin Sprocket & Gear
Manufacturer part number:
S1220BS 3/4
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$69.18 / EA

Description

Brand Name

Martin

Type

Bored to Size

Description

Martin stock spur gears are available in five different styles. Steel gears are furnished in plain style and plain style with hub. Cast gears are furnished, plain with hub, web with lightening holes, and spoke. Cast gears are machined on all operating surfaces. Martin cast gears are cast with a larger hub to provide extra strength and to allow for larger bores. Spur gears are stocked in both 14-1/2 and 20 deg pressure angles.
Martin Stock Spur Gear, Bored to Size, 3/4 to 13/16 in Bore Dia, 1.833 in Outside Dia, 20 Teeth, 12 Diametral Pitch, 1.667 in, 3/4 in Face Width, Type B, 1.4063 in Hub Dia, 1/2 in Hub Projection, 1-1/4 in Overall Length, 14.5 deg Pressure Angle, 0.1875 x 0.0938 in Keyway, Steel

Standards

AGMA 6-8

Features

  • Shaft ready includes keyway and setscrew
  • Precise machining and processes ensure consistent finish and high quality

Specifications

Bore Diameter:3/4 to 13/16 in
Country of Origin:US
Diametral Pitch:12
Face Width:3/4 in
Hub Diameter:1.4063 in
Hub Projection:1/2 in
Hub Type:Type B
Keyway Size:0.1875 x 0.0938 in
Material:Steel
Number of Teeth:20
Outside Diameter:1.833 in
Overall Length:1-1/4 in
Pitch Diameter:1.667 in
Pressure Angle:14.5 deg

Products Specifications

Bore Diameter
3/4"
Brand Name
Martin Sprocket & Gear
Gear Type
Spur
Measuring Units
Inch
Pitch
12
Pressure Angle
14.5
Type
Gear
