S1632BS 3/4 MSG

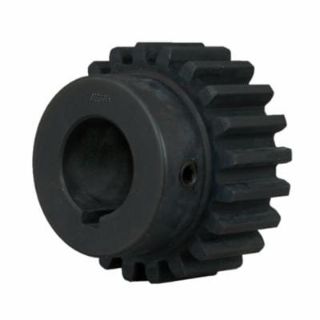

Picture of S1632BS 3/4 MSG
Actual Product May Vary From Image

Product Details

Manufacturer:
Martin Sprocket & Gear
Manufacturer part number:
S1632BS 3/4
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$81.68 / EA

Description

Brand Name

Martin

Type

Bored-to-Size External Tooth

Description

Martin stock spur gears are available in five different styles. Steel gears are furnished in plain style and plain style with hub. Cast gears are furnished, plain with hub, web with lightening holes, and spoke. Cast gears are machined on all operating surfaces. Martin cast gears are cast with a larger hub to provide extra strength and to allow for larger bores. Spur gears are stocked in both 14-1/2 and 20 deg pressure angles.
Martin Stock Spur Gear, Bored-to-Size External Tooth, 3/4 in Bore Dia, 2-1/8 in Outside Dia, 32 Teeth, 16 Diametral Pitch, 2 in, 1/2 in Face Width, Type B, 1-3/4 in Hub Dia, 1/2 in Hub Projection, 1 in Overall Length, 14.5 deg Pressure Angle, 1/4 x 1/8 in Keyway, Steel

Features

  • Manufactured of high carbon steel
  • Precise machining and processes ensure consistent finish and high quality
  • Commercial Class Gear. AGMA 6-8

Specifications

Bore Diameter:3/4 in
Country of Origin:US
Diametral Pitch:16
Face Width:1/2 in
Hub Diameter:1-3/4 in
Hub Projection:1/2 in
Hub Type:Type B
Keyway Size:1/4 x 1/8 in
Material:Steel
Number of Teeth:32
Outside Diameter:2-1/8 in
Overall Length:1 in
Pitch Diameter:2 in
Pressure Angle:14.5 deg

Products Specifications

Bore Diameter
3/4"
Brand Name
Martin Sprocket & Gear
Gear Type
Spur
Measuring Units
Inch
Pitch
16
Pressure Angle
14.5
Type
Gear
