S24LW RBC

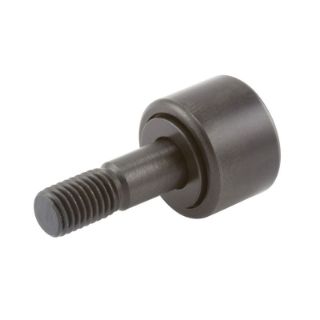

RBC® HexLube® S24LW S-LW Needle Roller Cylindrical Cam Follower, 3/4 in Dia x 1/2 in W Roller, 3/8 in Dia x 7/8 in L Stud, Chrome Steel Roller
Manufacturer part number: S24LW
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
10 0 4
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$40.70

Product Details

Brand Name

RBC®

Type

Needle Roller

Description

Needle Roller Cam Followers have a heavy outer ring cross section and a full complement of needle rollers. They offer high dynamic and static load carrying capability, and anti-friction performance, in a compact design. They are used as track rollers, cam followers, and in a wide range of linear motion systems.
RBC® HexLube® Cylindrical Cam Follower, Needle Roller, Series: S-LW, 3/4 in Roller Dia, 1/2 in Roller Width, 3/8 in Stud Dia, 7/8 in Stud Length, 3/8-24 UNF-2A, 3/8 in Thread Length, 1800 lb Dynamic/3100 lb Static, 5000 rpm Maximum, 250 deg F, Standard Stud, Sealed Closure, Hex, Chrome Steel Roller, Chrome Steel Stud, Black Oxide

Application

Material Handling, Turntable Mounting, Lift Trucks and Textile Machinery

Standards

ANSI/ABMA Standard 11 | ASPR | CAS | DFAR | FAR Standards

Features

  • Inventory reduction of about 50%
  • Allows relubrication in tight spots or when stud access is limited
  • HexLube® universal cam follower can eliminate the need to stock screwdriver slots or unsealed cam followers
  • Heavy stud cam followers are designed to provide additional stud strength for applications with high loading or shock loads
  • Standard stud cam followers offer the mounting convenience of a threaded stud and are designed to accommodate moderate loads
  • Double sealed to keep grease in and contaminants out

Specifications

Closure Type:Sealed
Country of Origin:US
Finish:Black Oxide
Head Type:Hex
Load Capacity:1800 lb Dynamic/3100 lb Static
Maximum Speed:5000 rpm
Roller Diameter:3/4 in
Roller Material:Chrome Steel
Roller Width:1/2 in
Series:S-LW
Stud Diameter:3/8 in
Stud Length:7/8 in
Stud Material:Chrome Steel
Stud Type:Standard
Temperature Rating:250 deg F
Thread Length:3/8 in
Thread Size:3/8-24 UNF-2A
