S625 THO

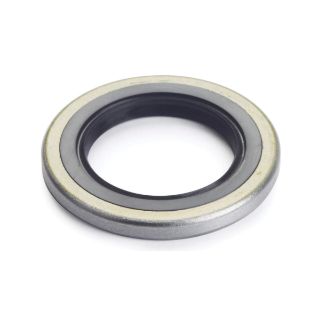

Thomson® S625 Double-Acting External Standard Linear Shaft Seal, 5/8 in ID x 1.129 in OD, 1/8 in W, Steel and Rubber
Manufacturer: Thomson Industries
Manufacturer part number: S625
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$7.70

Product Details

Brand Name

Thomson®

Type

Double-Acting External Standard

Description

Thomson® Linear Shaft Seal, Double-Acting External Standard, 5/8 in Inside Dia, 1.129 in Outside Dia, 1/8 in Width, 250 deg F, Steel and Rubber

Application

For Super Smart Ball Bushing® SSU10, Super Ball Bushing® SUPER10 and Ball Bushing® A101824, XA101824 precision steel closed type linear bearings

Features

Sizes 1-1/2 in and above use spring fingers to reinforce sealing capability, which could add to seal drag

Specifications

Inside Diameter:5/8 in
Material:Steel and Rubber
Outside Diameter:1.129 in
Temperature Rating:250 deg F
Width:1/8 in
