SAL1 7/16 TKN

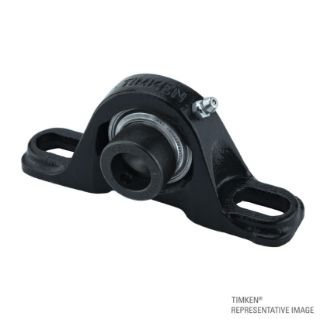

Picture of SAL1 7/16 TKN
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
SAL1 7/16
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$2,531.38 / EA

Description

Brand Name

Timken®

Type

Floating Normal Duty

Description

Timken® ball bearing housed units feature a wide-inner-ring ball bearing for additional shaft support. Designed for mounting on straight shafts with a slip fit, these housed units are available in an extensive array of types and sizes to accommodate many industrial applications.
Timken®, SAL1 7/16, Pillow Block Ball Bearing Unit, Floating Normal Duty, Series: SAL, 1-7/16 in Bore, 6-1/4 in Bolt Center-to-Center Length, 2-3/8 in Base to Bore Centerline, 4-1/4 in Overall Length, 4-1/8 in Overall Width, Two-Bolt Base Mounting, Round Bore, 2-3/8 in Base Width, Eccentric Locking Device, Contact Seal, Fixed Expansion, 5770 lb Dynamic/3440 lb Static Load, 250 deg F, 6540 rpm Maximum, Cast Iron, Uncoated

Application

Agriculture, Food Processing, Fans, Blowers and Conveyors

Features

  • The floating unit allows the bearing-to move axially as the shaft expands from rising temperatures
  • The fixed unit maintains shaft location
  • The bearings have a loose internal fit
  • The SAL unit is equipped with a self-aligning SM wide-inner-ring bearing and a self-locking collar
  • The external aligning ring is fitted to the spherical surface of the outer-ring
  • These types are equipped with oil-tight seals
  • They're normally fitted for oil lubrication, but they can be equipped for grease lubrication when specified
  • Before installation, lubricate with high-grade automotive oil, turbine oil or ball bearing grease
  • The units are assembled with a spacer ring (fixed type) by removing the spacer ring, the assembly becomes a floating unit

Specifications

Base to Bore Centerline:2-3/8 in
Base Width:2-3/8 in
Bolt Center-to-Center Length:6-1/4 in
Bore Diameter:1-7/16 in
Bore Type:Round
Expansion Type:Fixed
Finish:Uncoated
Load Capacity:5770 lb Dynamic/3440 lb Static
Locking Device:Eccentric
Material:Cast Iron
Maximum Speed:6540 rpm
Mounting Type:Two-Bolt Base
Overall Length:4-1/4 in
Overall Width:4-1/8 in
Seal Type:Contact
Series:SAL
Temperature Rating:250 deg F

Products Specifications

Brand Name
Timken
