Actual Product May Vary From Image

SB 22310 C3 W33 S MCG

Name: SB 22310 C3 W33 S MCG
Brand: Regal Rexnord
SKU: SB 22310 C3 W33 S MCG
Price: 602.92 USD
Availability: InStock

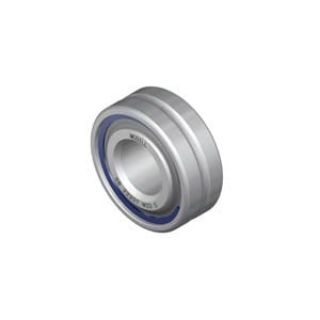

McGill® SPHERE-ROL® 0610065000 22300 Unmounted Spherical Roller Bearing, 1.9685 in Dia Bore, 4.3307 in OD, 1 Row, 1.5748 in W, 37400 lb Dynamic/38300 lb Static Load

Manufacturer: Regal Rexnord

Manufacturer part number: 0610065000

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
10	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$602.92

Qty:

Product Details

Brand Name

McGill®

Description

Aerospace and specialty spherical roller bearings utilize barrel shaped rolling elements and have some misalignment capability. These bearings can be manufactured in wide range of styles, materials, sizes and precision classes. All bearings are custom designed based on application needs.

McGill® SPHERE-ROL® Unmounted Spherical Roller Bearing, Series: 22300, 1.9685 in Bore Dia, 4.3307 in Outside Dia, 1 Row, 1.5748 in W, Single Standard Seal Closure, 37400 lb Dynamic/38300 lb Static, 52100 Steel Bearing, Steel Cage, 4200 rpm Maximum, -30 to 300 deg F

Application

Helicopter, Fixed-Wing, Industrial and Military Applications

Standards

AS9100 | Nadcap Certified

Features

Reduced weight/envelope with the same or higher performance
Longer fatigue life
Higher operating temperature
Improved corrosion resistance
Reduced vibration
Better fit
Easier installation
Improved reliability
Misalignment capability
Annular lubrication groove and holes
Inner ring raceway flanges
C3-radial internal clearance greater than standard clearance
Standard lubrication
NYLAPLATE® seal on one side
Cylindrical outside ring

Specifications

Bearing Material:	52100 Steel
Bore Diameter:	1.9685 in
Cage Material:	Steel
Closure Type:	Single Standard Seal
Country of Origin:	MX
Load Capacity:	37400 lb Dynamic/38300 lb Static
Maximum Speed:	4200 rpm
Number of Rows:	1
Outside Diameter:	4.3307 in
Series:	22300
Temperature Rating:	-30 to 300 deg F
Width:	1.5748 in
