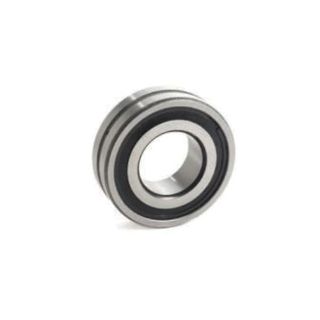

SB22219/C3W33SS BLT

TRITAN® Spherical Roller Bearings are constructed with a brass one piece CAM cage. As compared to the older style MB cage, this design allows for a longer roller and higher overall load carrying capacity, providing better performance and greater life. Certain special applications with higher degrees of axial load may perform better with the MB cage. MB and CC style (steel) cages are available upon request and lead time. Minimums may apply. TRITAN® Spherical Roller Bearings are produced with a cylindrical bore, as well as a tapered bore in most sizes. Tapered bore bearings will carry the "K" suffix (CAKM) and can be mounted on a smooth or stepped shaft using an adapter or a withdrawal sleeve. This arrangement facilitates easy mounting and dismounting. To facilitate efficient lubrication, the bearings are equipped with an annular groove and lubrication holes in the outer ring. This is represented by the W33 suffix.

TRITAN® Spherical Roller Bearing, Series: SB 22200 Series, 95 mm Bore, 170 mm OD, 1 Rows, 43 mm Width, Sealed Closure, 78100 kN Load, Brass Cage, 2518 rpm Grease Maximum
