SBM16 THO

Shaft support blocks are used for end or intermittent support where loads are light and deflection between supports is not a problem. Unlike shaft support rails, blocks do not permit longitudinal passage of open-type Ball Bushing® bearings. Type SBM shaft support blocks enable clamping of shafts and eliminate the need for bolts, to maintain shaft position. Shimming is suggested for high-precision applications to eliminate the effect of variations in surface of base or manufacturing tolerances between supports.

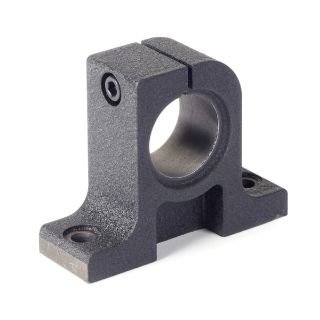

Thomson® 60 Case® LinearRace® Shaft Support Block, Standard Type SBM, 16 mm Shaft Diameter, 16 mm Width, 42 mm Height, 50 mm Length, For Use With: RoundRail™ 1BA/1NA End-Supported Linear Guide, Malleable Iron, Painted
