SBP208-40MMG BLT

Units feature one-piece cast iron housing, solid base, wide inner ring bearing, dual heavy duty contact-type seals, steel plate slingers on sides for dust exclusion, full self alignment, grease fitting for adding lubricant. Set screw units have two set screws 120 deg apart in the inner ring. Eccentric locking collar units provide locking for one-directional applications. Triple lip seals available on request. In addition to our standard items and configurations listed below, TRITAN® excels at manufacturing customized bearings to meet specific application requirements.

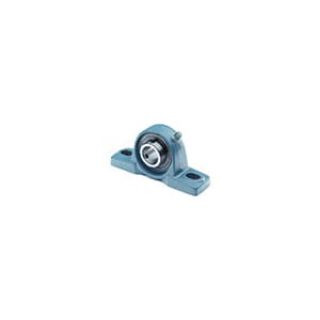

TRITAN® Pillow Block, Light Duty, Series: SBP208, 40 mm Bore, 5.3543 in Bolt Center-to-Center Length, 1-15/16 in Base to Bore Centerline, 7.0866 in Overall Length, 3.8583 in Overall Height, 2.0472 in Base Width, Set Screw Locking Device, 6631.86 lb Dynamic/4069.04 lb Static Load, Cast Iron
