Home / SBPP203-17MM BLT

SBPP203-17MM BLT

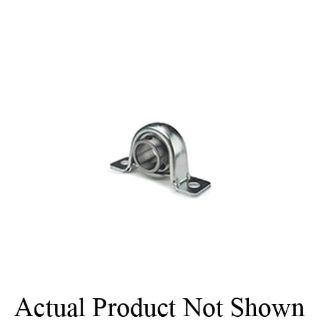

Picture of SBPP203-17MM BLT
Actual Product May Vary From Image

Product Details

Manufacturer:
Bearings Limited
Manufacturer part number:
SBPP203-17MM
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$21.76 / EA

Description

Brand Name

TRITAN®

Type

Light Duty

Description

TRITAN® Pillow Block, Light Duty, Series: SBPP203, 17 mm Bore, 2.6772 in Bolt Center-to-Center Length, 7/8 in Base to Bore Centerline, 3.3858 in Overall Length, 1.7244 in Overall Height, 0.9843 in Base Width, Set Screw Locking Device, 2158.17 lb Dynamic/1034.12 lb Static Load, Pressed Steel, Zinc Plated

Features

  • Lightweight unit for applications with low rotating speed or light load
  • Narrow inner ring bearing
  • Full cover metal-shroud seals

Specifications

Base to Bore Centerline:7/8 in
Base Width:0.9843 in
Bolt Center-to-Center Length:2.6772 in
Bore Diameter:17 mm
Finish:Zinc Plated
Load Capacity:2158.17 lb Dynamic/1034.12 lb Static
Locking Device:Set Screw
Material:Pressed Steel
Overall Height:1.7244 in
Overall Length:3.3858 in
Series:SBPP203
