Home / SBPP205-25MM BLT

SBPP205-25MM BLT

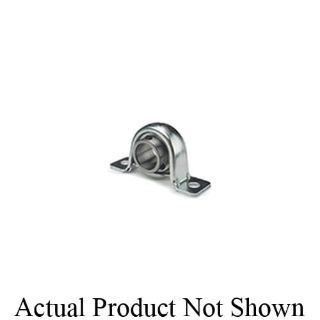

Picture of SBPP205-25MM BLT
Actual Product May Vary From Image

Product Details

Manufacturer:
Bearings Limited
Manufacturer part number:
SBPP205-25MM
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$23.35 / EA

Description

Brand Name

TRITAN®

Type

Light Duty

Description

TRITAN® Pillow Block, Light Duty, Series: SBPP205, 25 mm Bore, 3.3858 in Bolt Center-to-Center Length, 1-1/8 in Base to Bore Centerline, 4.252 in Overall Length, 2.2283 in Overall Height, 1.2598 in Base Width, Set Screw Locking Device, 3147.33 lb Dynamic/1764.75 lb Static Load, Pressed Steel, Zinc Plated

Features

  • Lightweight unit for applications with low rotating speed or light load
  • Narrow inner ring bearing
  • Full cover metal-shroud seals

Specifications

Base to Bore Centerline:1-1/8 in
Base Width:1.2598 in
Bolt Center-to-Center Length:3.3858 in
Bore Diameter:25 mm
Finish:Zinc Plated
Load Capacity:3147.33 lb Dynamic/1764.75 lb Static
Locking Device:Set Screw
Material:Pressed Steel
Overall Height:2.2283 in
Overall Length:4.252 in
Series:SBPP205
