SBPP206-19 BLT

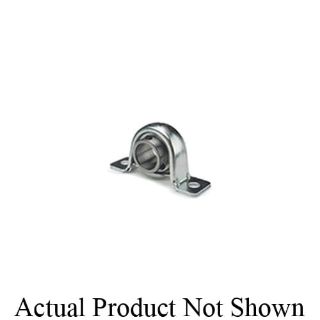

Picture of SBPP206-19 BLT
Actual Product May Vary From Image

Product Details

Manufacturer:
Bearings Limited
Manufacturer part number:
SBPP206-19
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$31.66 / EA

Description

Brand Name

TRITAN®

Type

Light Duty

Description

TRITAN® Pillow Block, Light Duty, Series: SBPP206, 1-3/16 in Bore, 3.7402 in Bolt Center-to-Center Length, 1-5/16 in Base to Bore Centerline, 4.6063 in Overall Length, 2.6102 in Overall Height, 1.4961 in Base Width, Set Screw Locking Device, 4383.77 lb Dynamic/2540.34 lb Static Load, Pressed Steel, Zinc Plated

Features

  • Lightweight unit for applications with low rotating speed or light load
  • Narrow inner ring bearing
  • Full cover metal-shroud seals

Specifications

Base to Bore Centerline:1-5/16 in
Base Width:1.4961 in
Bolt Center-to-Center Length:3.7402 in
Bore Diameter:1-3/16 in
Finish:Zinc Plated
Load Capacity:4383.77 lb Dynamic/2540.34 lb Static
Locking Device:Set Screw
Material:Pressed Steel
Overall Height:2.6102 in
Overall Length:4.6063 in
Series:SBPP206
