SBPP207-20 BLT

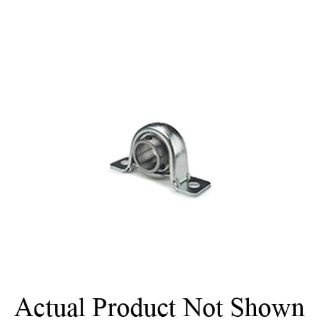

Picture of SBPP207-20 BLT
Actual Product May Vary From Image

Product Details

Manufacturer:
Bearings Limited
Manufacturer part number:
SBPP207-20
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$41.57 / EA

Description

Brand Name

TRITAN®

Type

Light Duty

Description

TRITAN® Pillow Block, Light Duty, Series: SBPP207, 1-1/4 in Bore, 4.1732 in Bolt Center-to-Center Length, 1-9/16 in Base to Bore Centerline, 5.0787 in Overall Length, 3.0709 in Overall Height, 1.6535 in Base Width, Set Screw Locking Device, 5777.59 lb Dynamic/3439.58 lb Static Load, Pressed Steel, Zinc Plated

Features

  • Lightweight unit for applications with low rotating speed or light load
  • Narrow inner ring bearing
  • Full cover metal-shroud seals

Specifications

Base to Bore Centerline:1-9/16 in
Base Width:1.6535 in
Bolt Center-to-Center Length:4.1732 in
Bore Diameter:1-1/4 in
Finish:Zinc Plated
Load Capacity:5777.59 lb Dynamic/3439.58 lb Static
Locking Device:Set Screw
Material:Pressed Steel
Overall Height:3.0709 in
Overall Length:5.0787 in
Series:SBPP207
