SBT150 OZG

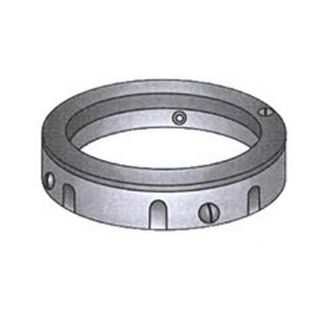

Picture of SBT150 OZG
Actual Product May Vary From Image

Product Details

Manufacturer:
Appleton
Manufacturer part number:
SBT-150
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$36.86 / EA

Description

Brand Name

O-Z/Gedney

Type

Type SBT Specification Grade

Description

O-Z/Gedney Conduit Bushing, Type SBT Specification Grade, 1-1/2 in Trade, Insulated, 150 deg C, Malleable Iron, Zinc Plated, 2-1/4 in OD x 3/4 in W Dimensions

Application

For EMT conduits

Standards

UL File No. E11853/514B | CSA C22.2 No. 18 011584 | Federal Specification W-F-408E NEMA:FB-1

Features

  • O-Z/Gedney specification grade insulated bushings help protect insulated conductors from abrasion during pulling or due to mechanical vibration
  • They also provide a voltage gradient between the live conductors and ground at the point where conductor insulation is subjected to electrical and mechanical stress
  • Molded on high impact phenolic thermosetting insulation
  • Positive metallic conduit stop

Specifications

Country of Origin:MX
Dimensions:2-1/4 in OD x 3/4 in W
Finish:Zinc Plated
Insulated/Non-Insulated:Insulated
Material:Malleable Iron
Temperature Rating:150 deg C
Trade Size:1-1/2 in
