SCJT 1/2 TKN

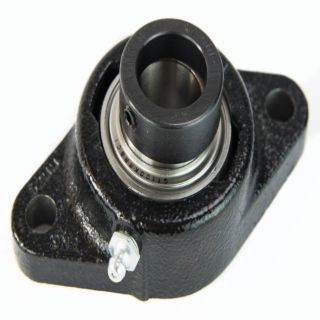

Picture of SCJT 1/2 TKN
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
SCJT 1/2
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$92.92 / EA

Description

Brand Name

Fafnir®

Type

Normal Duty Standard

Description

Timken® ball bearing housed units feature a wide-inner-ring ball bearing for additional shaft support. Designed for mounting on straight shafts with a slip fit, these housed units are available in an extensive array of types and sizes to accommodate many industrial applications.
Timken® Fafnir®, SCJT 1/2, Flange Mount Ball Bearing Unit, Normal Duty Standard, Series: SCJT, 1/2 in Bore, 3 in Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 3-7/8 in Overall Length/Diameter, 1 in Overall Depth, 1.003 in Overall Height, Set Screw Locking Device, Steel Bearing, 2380 lb Dynamic/1070 lb Static Load, 7370 rpm Maximum, -30 to 275 deg F, Uncoated

Application

Agriculture, Food Processing, Fans, Blowers and Conveyors

Features

  • This series has the same construction and design as SCJ type, but is mounted with two-bolts instead of four
  • This series is assembled with GYA-RRB bearings with positive-contact, land-riding seals and set screw locking
  • The units are factory pre-lubricated
  • A grease fitting is provided for relubrication

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:3 in
Bore Diameter:1/2 in
Finish:Uncoated
Flange Mounting Type:2-Bolt
Load Capacity:2380 lb Dynamic/1070 lb Static
Locking Device:Set Screw
Maximum Speed:7370 rpm
Overall Depth:1 in
Overall Height:1.003 in
Overall Length/Diameter:3-7/8 in
Series:SCJT
Temperature Rating:-30 to 275 deg F

Products Specifications

Brand Name
Timken
Measuring Units
Inch
Shaft Diameter
1 1/2 in
