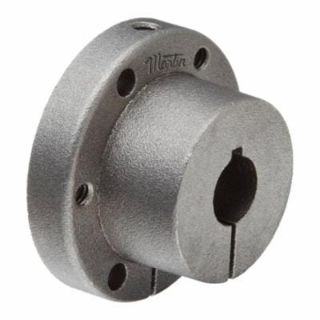

Actual Product May Vary From Image

SD 1 3/8 MSG

Name: SD 1 3/8 MSG
Brand: Martin Sprocket & Gear
SKU: SD 1 3/8 MSG
Price: 35.67 USD
Availability: InStock

Martin SD 1 3/8 Standard QD Bushing, 1-3/8 in Dia Bore, 2.187 in Dia Barrel, 3.188 in Dia Flange, 1.813 in OAL, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: SD 1 3/8

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
4	0	2
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$35.67

Qty:

Product Details

Brand Name

Martin

Type

Standard

Description

Martin QD Bushing, Standard, 1-3/8 in Bore Dia, 2.187 in Barrel Dia, 3-1/2 in Hub Dia, 2.687 in Bolt Circle, 3.188 in Flange Dia, 1/2 in Flange Thickness, 3 Bolt Holes, 1/4-20 x 1-7/8 in Screw, 5000 in-lb, 1.813 in Overall Length, 5/32 x 5/16 in Keyway, Steel

Features

Size SD bushing
QD (quick detachable) bushings are designed for conventional mounting or reverse mounting
These bushings have a flange

Specifications

Barrel Diameter:	2.187 in
Bolt Circle Diameter:	2.687 in
Bore Diameter:	1-3/8 in
Country of Origin:	US
Flange Diameter:	3.188 in
Flange Thickness:	1/2 in
Hub Diameter:	3-1/2 in
Keyway Size:	5/32 x 5/16 in
Material:	Steel
Number of Bolt Holes:	3
Overall Length:	1.813 in
Screw Size:	1/4-20 x 1-7/8 in
Torque Rating:	5000 in-lb
