SD 38MM MSG

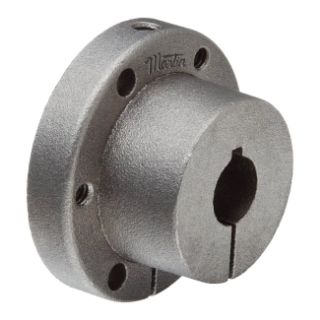

Picture of SD 38MM MSG
Actual Product May Vary From Image

Product Details

Manufacturer:
Martin Sprocket & Gear
Manufacturer part number:
SD 38MM
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$38.84 / EA

Description

Brand Name

Martin

Description

QD (quick detachable) bushings are designed for conventional mounting or reverse mounting. These bushings have a flange.
Martin QD Bushing, 38 mm Bore Dia, 2.187 in Barrel Dia, 3-1/2 in Hub Dia, 2.687 in Bolt Circle, 3.187 in Flange Dia, 1/2 in Flange Thickness, 3 Bolt Holes, 1/4-20 x 1-7/8 in Screw, 5000 in-lb, 1-13/16 in Overall Length, 10 x 3.3 mm Keyway, Steel

Features

  • Size SD bushing
  • Recommended for use with QD bushed parts
  • Tolerances meet or exceed industry guidelines and standards
  • Precise machining and processes ensure consistent finish and high quality
  • Interchangeable with other manufacturers’ QD bushings

Includes

(1) IS-QD Instruction Sheet, (1) SD-Bolts, (3) Bolts, (3) Washers and (1) Setscrew

Specifications

Barrel Diameter:2.187 in
Bolt Circle Diameter:2.687 in
Bore Diameter:38 mm
Country of Origin:US
Flange Diameter:3.187 in
Flange Thickness:1/2 in
Hub Diameter:3-1/2 in
Keyway Size:10 x 3.3 mm
Material:Steel
Number of Bolt Holes:3
Overall Length:1-13/16 in
Screw Size:1/4-20 x 1-7/8 in
Torque Rating:5000 in-lb

Products Specifications

Bore Size
38 mm
Brand Name
Martin Sprocket & Gear
Bushing Series
SD
Measuring Units
Metric
Type
QD® Bushing
