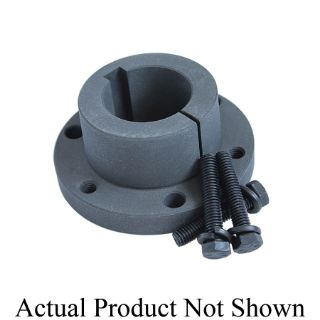

Actual Product May Vary From Image

SD 42MM AD

Name: SD 42MM AD
Brand: IDC-USA
SKU: SD 42MM AD
Price: 34.58 USD
Availability: InStock

IDC Select® IDC SD-42MM Finished Bore QD® Bushing, 42 mm Dia Bore, 2.187 in Dia Barrel, 3-1/8 in Dia Flange, 1-13/16 in OAL, Nodular Graphite Cast Iron

Manufacturer: IDC-USA

Manufacturer part number: IDC SD-42MM

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
3	0	1
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$34.58

Qty:

Product Details

Brand Name

IDC Select®

Type

Finished Bore

Description

IDC Select® bushings are available in H, QD®, Taper-Lock®, and Split Taper™ designs and are available in inch and metric sizes. They are stocked in popular finished bore sizes. All IDC Select® bushings are fully interchangeable with industry standard design.

IDC Select® QD® Bushing, Finished Bore, 42 mm Bore Dia, 2.187 in Barrel Dia, 2-11/16 in Bolt Circle, 3-1/8 in Flange Dia, 7/16 in Flange Thickness, 1/4-20 x 1-7/8 in Screw, 6 ft-lb, 1-13/16 in Overall Length, 12 x 8 mm Keyway, Nodular Graphite Cast Iron

Application

Air Handling, Mining, Wood Process, Agriculture, Aggregate, Oilfield, Air Compressor and Standard Industrial Applications

Standards

ANSI Specified | ASTM A536/A536-84 | SAE Standard

Features

Easy installation and dismount
Setscrew over keyway
Most sizes can be reverse mounted
Keystock provided with shallow key sizes
SD size QD® bushing

Includes

(3) Cap Screws

Specifications

Barrel Diameter:	2.187 in
Bolt Circle Diameter:	2-11/16 in
Bore Diameter:	42 mm
Flange Diameter:	3-1/8 in
Flange Thickness:	7/16 in
Keyway Size:	12 x 8 mm
Material:	Nodular Graphite Cast Iron
Overall Length:	1-13/16 in
Screw Size:	1/4-20 x 1-7/8 in
Torque Rating:	6 ft-lb
