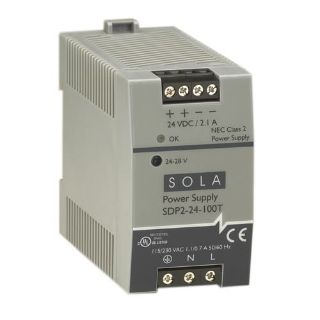

Actual product may vary from image

SDP3-15-100T SHD

50W 15V DIN PLASTIC 115/230VIN

Manufacturer: SolaHD

Manufacturer part number: SDP3-15-100T

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
Loading...
Show More Locations

$200.73

Qty:

Product Details

Brand Name

SolaHD

Type

SDP Low Power DIN Rail Series

Description

SDP Series Low Power DIN Rail Power Supplies, Input Voltage: 85-264 Vac, 90-375 Vdc, Output Voltage: 12 - 15 Vdc , Frequency: 47-63 Hz, Output Current Rating 4.2 - 3.4 A

Application

Industrial Control, Process Control, Machine Control, Building Automation, Instrumentation

Standards

UL (CANADA AND US), UL 94, UL 508, UL 60950, CUL, CSA-C22.2, CE

Features

LED Status Indication, -10 to 70 DEG C Operating Temperature, Output Voltage 10 to 12 VDC, Output Current Rating 3 to 2.5A

Specifications

Amperage Rating:	0.6, 0.33 AMP
Cable Size:	20 to 12 Solid or Stranded AWG
Country of Origin:	CN
Efficiency:	80 PCT
Enclosure:	Class 1, IP20
Environmental Conditions:	90 RH Humidity Range PCT
Frequency Rating:	47/63 HZ
Height:	2.95 IN
Length:	1.77 IN
Material:	Molded Plastic
Mounting:	DIN Rail
Voltage Rating:	85 to 264V AC, 90 to 375V DC
Width:	3.58 IN

Resources

Spec Sheet Warranty
