SDS 42MM MSG

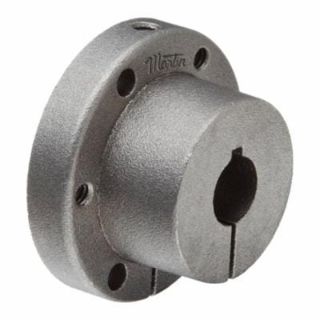

Picture of SDS 42MM MSG
Actual Product May Vary From Image

Product Details

Manufacturer:
Martin Sprocket & Gear
Manufacturer part number:
SDS 42MM
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$32.31 / EA

Description

Brand Name

Martin

Description

QD (quick detachable) bushings are designed for conventional mounting or reverse mounting. These bushings have a flange.
Martin QD Bushing, 42 mm Bore Dia, 2.187 in Barrel Dia, 4-3/4 in Hub Dia, 2.69 in Bolt Circle, 3.18 in Flange Dia, 0.43 in Flange Thickness, 3 Bolt Holes, 1/4-20 x 1-3/8 in Screw, 5000 in-lb, 1.31 in Overall Length, 12 x 3.3 mm Keyway, Ductile Iron

Features

  • Size SDS bushing
  • QD (quick detachable) bushings are designed for conventional mounting or reverse mounting
  • These bushings have a flange
  • Precise machining and processes ensure consistent finish and high quality
  • Interchangeable with other manufacturers’ QD bushings

Specifications

Barrel Diameter:2.187 in
Bolt Circle Diameter:2.69 in
Bore Diameter:42 mm
Country of Origin:US
Flange Diameter:3.18 in
Flange Thickness:0.43 in
Hub Diameter:4-3/4 in
Keyway Size:12 x 3.3 mm
Material:Ductile Iron
Number of Bolt Holes:3
Overall Length:1.31 in
Screw Size:1/4-20 x 1-3/8 in
Torque Rating:5000 in-lb
