SDS 9/16 MSG

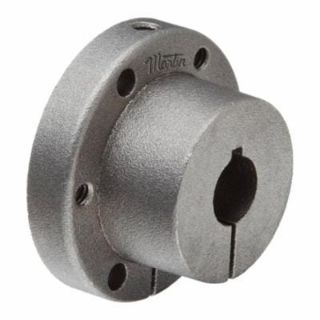

Picture of SDS 9/16 MSG
Actual Product May Vary From Image

Product Details

Manufacturer:
Martin Sprocket & Gear
Manufacturer part number:
SDS 9/16
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$32.31 / EA

Description

Brand Name

Martin

Type

Standard

Description

QD (quick detachable) bushings are designed for conventional mounting or reverse mounting. These bushings have a flange.
Martin QD Bushing, Standard, 9/16 in Bore Dia, 2.187 in Barrel Dia, 3-1/2 in Hub Dia, 2-11/16 in Bolt Circle, 3-3/16 in Flange Dia, 7/16 in Flange Thickness, 3 Bolt Holes, 1/4-20 x 1-3/8 in Screw, 5000 in-lb, 1-5/16 in Overall Length, 1/8 x 1/16 in Keyway, Steel

Features

  • Size SDS bushing
  • QD (quick detachable) bushings are designed for conventional mounting or reverse mounting
  • These bushings have a flange
  • Precise machining and processes ensure consistent finish and high quality
  • Interchangeable with other manufacturers’ QD bushings

Specifications

Barrel Diameter:2.187 in
Bolt Circle Diameter:2-11/16 in
Bore Diameter:9/16 in
Country of Origin:US
Flange Diameter:3-3/16 in
Flange Thickness:7/16 in
Hub Diameter:3-1/2 in
Keyway Size:1/8 x 1/16 in
Material:Steel
Number of Bolt Holes:3
Overall Length:1-5/16 in
Screw Size:1/4-20 x 1-3/8 in
Torque Rating:5000 in-lb
