SETL3 HWD

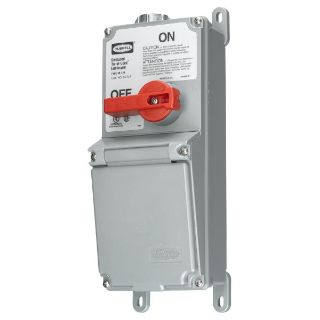

Picture of SETL3 HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
SETL3
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$421.80 / EA

Description

Brand Name

Wiring Device-Kellems

Type

2-Position Extra Heavy Duty Lever Actuated Standard Sized Foot Mount

Alternate Supplier #

Grainger - 6C655

Description

Wiring Device-Kellems, SETL3, Switched Enclosure, 2-Position Extra Heavy Duty Lever Actuated Standard Sized Foot Mount, 600 VAC, 30 A, 15 hp, 60 Hz Frequency, 3 Pole, 5 Wires, 4X NEMA Rating, -40 to 75 deg C, Screw Terminal, Composite, Gray, 11.38 x 4.88 x 4.5 in Dimensions

Application

For Hubbellock® 3-pole 4-wire 30 A receptacle, switches and lighting controls and extra heavy duty industrial applications

Standards

UL 746C | CSA Certified

Features

  • Accommodates 20/30 A Twist-Lock® receptacle
  • Zinc 3/4 in watertight conduit hub
  • Neoprene enclosure gasket
  • 600 Vrms maximum working voltage
  • Withstands 3000 VAC minimum dielectric voltage
  • Lockable handle meets OSHA lockout requirements
  • 2-position 30 A contact
  • 60 Hz frequency rating
  • 6000 cycles operating
  • Without receptacle
  • Type 3R rainproof or 12K dust-tight
  • NEMA 4X/IP54 enclosure rating
  • Molded Valox® resists abuse, corrosion and enhances safety
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • 30 A, 10 AWG terminal accommodation
  • Terminals identified in accordance with UL 498 (X, Y, Z, white, green) terminal identification
  • PBT base, top, handle and shaft

Specifications

Amperage Rating:30 A
Color:Gray
Country of Origin:PR
Dimensions:11.38 x 4.88 x 4.5 in
Frequency Rating:60 Hz
Horsepower:15 hp
Material:Composite
NEMA Rating:4X
Number of Poles:3
Number of Wires:5
Temperature Rating:-40 to 75 deg C
Terminal Type:Screw
Voltage Rating:600 VAC

Products Specifications

Amperage Rating
30 A
Brand Name
Hubbell Wiring Device-Kellems
Contact Configuration
Two Position
Number of Poles
3
Type
Switched Enclosure Less Receptacle
Voltage Rating
600V
