SHC1010ZP HWD

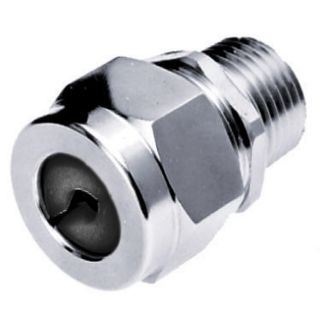

Picture of SHC1010ZP HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
SHC1010ZP
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$14.92 / EA

Description

Brand Name

Wiring Device-Kellems

Type

Form 1 Standard Straight

Description

Hubbell® has the broadest line and the widest choice of materials in the industry. NPT hub sizes from 1/4 to 3 in straight male end, 90 deg, 45 deg, female and underground feed connectors. They are available in your choice of aluminum, plated steel, nylon and stainless steel. Hubbell® nylon cord connectors resist most common industrial corrosives and provide highly effective pullout protection in a lightweight design. They are ideal for any application where weight, conductivity or corrosion may be an issue. They are available in NPT hub sizes from 1/4 to 1 in.
Wiring Device-Kellems, SHC1010ZP, Cord Connector, Form 1 Standard Straight, Series: SHC, 3/8 in Trade, 1 Conductors, Cable Openings: 0.25 to 0.31 in, Jacketed Cable, MNPT Connection, Steel, Machined/Zinc Plated, Metallic, -30 to 225 deg F, 0.98 in Dia x 1.32 in L Dimensions

Application

For wet location when used with a listed nylon washer between box and fitting Applications

Standards

CSA Certified | NEC Class I, Division 2, Class II, Division 1/2, Class Ill, Division 1/2 Hazardous Locations | UL 514B | Title 46-Part 111 | UL94 V-2 Flammability Rating

Features

  • Heavy duty connectors hold up to most manufacturing chemicals including acid solutions, solvents and other corrosive materials
  • Machined threads provide a strong positive seal, the tapered interior dome easily drives the bushing into the connector body
  • Lubricated neoprene bushing compresses easily for a liquidtight seal and added pull-out protection
  • Patented GOTCHA™ ring incorporates a split hinge design to prevent friction and provide strain relief, also color coded for sizing identification
  • Black color code
  • 0.67 to 0.7 in recommended knockout hole
  • 0.42 in L thread
  • 0.45 in Dia throat
  • The zinc plated steel cord connectors offers the strength of steel and the corrosion resistance of zinc plating

Specifications

Cable Openings:0.25 to 0.31 in
Cable Type:Jacketed
Color:Metallic
Connection Type:MNPT
Country of Origin:US
Dimensions:0.98 in Dia x 1.32 in L
Finish:Machined/Zinc Plated
Material:Steel
Number of Conductors:1
Series:SHC
Temperature Rating:-30 to 225 deg F
Trade Size:3/8 in
