SHC1012SS HWD

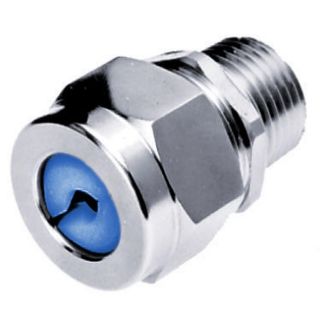

Picture of SHC1012SS HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
SHC1012SS
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$107.33 / EA

Description

Brand Name

Wiring Device-Kellems

Type

Flexible Standard Straight

Description

Stainless steel cord connectors provide superior strength and corrosion resistance for industrial and military applications. They are machined from 300 series stainless steel and come in 1/4 in through 1 in, NPT hub sizes.
Wiring Device-Kellems Cord Connector, Flexible Standard Straight, Series: SHC, 3/8 in, Cable Openings: 0.38 to 0.44 in, Jacketed Cable, MNPT, Stainless Steel, Machined, Metallic, -30 to 225 deg F, 1.01 in Dia x 1.36 in L

Application

For wet location when used with a listed nylon washer between box and fitting, hazardous location Applications

Standards

CSA Certified | RoHS Compliant | UL 514B

Features

  • Machined threads provide a strong positive seal, the tapered interior dome easily drives the bushing into the connector body
  • Lubricated neoprene bushing compresses easily for a liquidtight seal and added pull-out protection
  • Patented GOTCHA® ring incorporates a split hinge design to prevent friction and provide strain relief, also color-coded for sizing identification
  • Blue color code
  • 0.67 to 0.7 in recommended knockout hole
  • 0.46 in thread length
  • 0.45 in Dia throat
  • F1 form size
  • NEMA 4/4X/12/13 enclosure

Specifications

Cable Openings:0.38 to 0.44 in
Cable Type:Jacketed
Color:Blue/Metallic
Connection Type:MNPT
Country of Origin:US
Dimensions:1.01 in Dia x 1.36 in L
Finish:Machined
Material:Stainless Steel
Number of Conductors:1
Series:SHC
Temperature Rating:-30 to 225 deg F
Trade Size:3/8 in
