SHC1015 HWD

Name: SHC1015 HWD
Brand: Hubbell Wiring Device-Kellems
SKU: SHC1015 HWD
Price: 10.23 USD
Availability: InStock

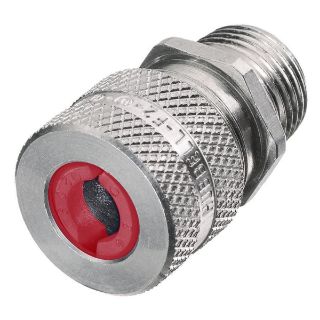

Wiring Device-Kellems SHC1015 Form 1 Liquidtight Straight Conduit Connector, 1/2 in Trade, 1 Conductor, 0.19 to 0.25 in Cable Openings, Aluminum, Machined

Manufacturer: Hubbell Wiring Device-Kellems

Manufacturer part number: SHC1015

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
24	10	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$10.23

Qty:

Product Details

Brand Name

Wiring Device-Kellems

Type

Form 1 Liquidtight Straight

Alternate Supplier #

Grainger - 5D716

Description

Wiring Device-Kellems Conduit Connector, Form 1 Liquidtight Straight, 1/2 in Trade, 1 Conductor, Cable Openings: 0.19 to 0.25 in, MNPT Connection, Aluminum, Machined, Metallic, -30 to 225 deg F

Application

For wet location when used with a listed nylon washer between box and fitting Applications

Standards

CSA Certified | RoHS Compliant | UL 514B

Features

Machined aluminum cord connectors in NPT hub sizes 1/4 through 1 in and cast aluminum 1 to 3 in
Provide durable performance and a clean attractive look without adding unwanted weight
NPT hub sizes 1/4 to 1 in feature an attractive knurled finish which makes them easy to handle and maintain a UL listing by hand tightening
Machined threads provide a strong positive seal, the tapered interior dome easily drives the bushing into the connector body
The patented GOTHCA® ring incorporates a split hinge design to prevent friction and provide strain relief, also color coded for sizing identification
Lubricated neoprene bushing compresses easily for a liquidtight seal and added pullout protection
The connector body is a 1-piece design with machined threads, a tapered interior seats the bushing evenly for a liquidtight seal

Specifications

Cable Openings:	0.19 to 0.25 in
Cable Type:	Jacketed
Color:	Metallic
Connection Type:	MNPT
Country of Origin:	CN
Finish:	Machined
Material:	Aluminum
Number of Conductors:	1
Series:	SHC
Temperature Rating:	-30 to 225 deg F
Trade Size:	1/2 in
