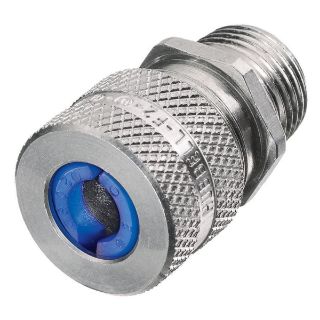

Picture of SHC1018 HWD
Actual Product May Vary From Image

SHC1018 HWD

Wiring Device-Kellems SHC1018 Form 1 Flexible Standard Straight Cord Connector, 1/2 in Trade, 0.38 to 0.44 in Cable Openings, Aluminum, Machined
Manufacturer: Hubbell Wiring Device-Kellems
Manufacturer part number: SHC1018
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 51
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$10.23

Product Details

Brand Name

Wiring Device-Kellems

Type

Form 1 Flexible Standard Straight

Description

Hubbell® offers a full line of machined aluminum cord connectors in NPT hub sizes 1/4 in through 1 in and cast aluminum 1 to 3 in. They provide durable performance and a clean attractive look without adding unwanted weight.
Wiring Device-Kellems Cord Connector, Form 1 Flexible Standard Straight, Series: SHC, 1/2 in, Cable Openings: 0.38 to 0.44 in, Jacketed Cable, MNPT, Aluminum, Machined, Metallic, -30 to 225 deg F, 0.88 in Dia x 1.36 in L

Application

For wet location when used with a listed nylon washer between box and fitting, hazardous location Applications

Standards

CSA Certified | RoHS Compliant | UL 514B

Features

  • Machined threads provide a strong positive seal, the tapered interior dome easily drives the bushing into the connector body
  • Lubricated neoprene bushing compresses easily for a liquidtight seal and added pullout protection
  • Patented GOTCHA® ring incorporates a split hinge design to prevent friction and provide strain relief, also color-coded for sizing identification
  • NEMA 4/4X/12/13 enclosure

Specifications

Cable Openings:0.38 to 0.44 in
Cable Type:Jacketed
Color:Blue/Metallic
Connection Type:MNPT
Country of Origin:CN
Dimensions:0.88 in Dia x 1.36 in L
Finish:Machined
Material:Aluminum
Number of Conductors:1
Series:SHC
Temperature Rating:-30 to 225 deg F
Trade Size:1/2 in
