SHC1024CR HWD

Name: SHC1024CR HWD
Brand: Hubbell Wiring Device-Kellems
SKU: SHC1024CR HWD
Price: 10.47 USD
Availability: InStock

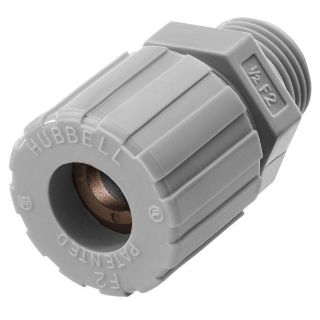

Wiring Device-Kellems SHC1024CR Form 2 Standard Duty Straight Cord Connector, 1/2 in Trade, 1 Conductor, 0.5 to 0.63 in Cable Openings, Nylon, Smooth

Manufacturer: Hubbell Wiring Device-Kellems

Manufacturer part number: SHC1024CR

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	16
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$10.47

Qty:

Product Details

Brand Name

Wiring Device-Kellems

Type

Form 2 Standard Duty Straight

Alternate Supplier #

Grainger - 5D885

Description

Wiring Device-Kellems Cord Connector, Form 2 Standard Duty Straight, 1/2 in Trade, 1 Conductor, Cable Openings: 0.5 to 0.63 in, Jacketed Cable, MNPT Connection, Nylon, Smooth, Brown/Gray, -30 to 225 deg F

Application

For hazardous location and wet locations when used with a listed nylon washer between box and fitting

Standards

CSA Certified | Class I Division 2, Class II Division 1 and 2, Class III Division 1 and 2 in Accordance With The NEC | NEMA Type 4, 4X, 12 and 13 | UL 514B | UL 94-V2

Features

Nylon cord connector resists most common industrial corrosives
Provides effective pullout protection
Gotcha® ring incorporates a split hinge design to prevent friction and provide strain relief
The connector body is a one-piece design with machined threads that provide a strong positive seal
A tapered interior seats the bushing evenly for a liquid tight seal
Tapped opening mounting hardware
Cable jacket may have to be stripped to pass through connector body
Form 2-cord connector

Specifications

Cable Openings:	0.5 to 0.63 in
Cable Type:	Jacketed
Color:	Brown/Gray
Connection Type:	MNPT
Country of Origin:	CN
Finish:	Smooth
Material:	Nylon
Number of Conductors:	1
Temperature Rating:	-30 to 225 deg F
Trade Size:	1/2 in
