SHC1024SS HWD

Name: SHC1024SS HWD
Brand: Hubbell Wiring Device-Kellems
SKU: SHC1024SS HWD
Price: 132.40 USD
Availability: OutOfStock

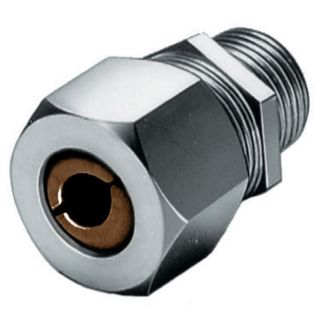

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

SHC1024SS

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$132.40 / EA

Description

Brand Name

Wiring Device-Kellems

Type

Flexible Standard Straight

Description

Stainless steel cord connectors provide superior strength and corrosion resistance for industrial and military applications. They are machined from 300 series stainless steel and come in 1/4 in through 1 in, NPT hub sizes.

Wiring Device-Kellems Cord Connector, Form 2 Flexible Standard Straight, Series: SHC, 1/2 in, Cable Openings: 0.5 to 0.63 in, Jacketed Cable, MNPT, Stainless Steel, Machined, Metallic, -30 to 225 deg F, 1.3 in Dia x 1.64 in L

Application

For use in wet locations when used with a listed nylon washer between box, fitting and hazardous locations

Standards

CSA Certified | RoHS Compliant | UL 514B

Features

Machined threads provide a strong positive seal, the tapered interior dome easily drives the bushing into the connector body
Lubricated neoprene bushing compresses easily for a liquidtight seal and added pull-out protection
Patented GOTCHA™ ring incorporates a split hinge design to prevent friction and provide strain relief, also color coded for sizing identification
Brown color code
1.09 to 1.14 in recommended knockout hole
0.54 in L thread
0.63 in Dia throat

Specifications

Cable Openings:	0.5 to 0.63 in
Cable Type:	Jacketed
Color:	Brown/Metallic
Connection Type:	MNPT
Country of Origin:	US
Dimensions:	1.3 in Dia x 1.64 in L
Finish:	Machined
Material:	Stainless Steel
Number of Conductors:	1
Series:	SHC
Temperature Rating:	-30 to 225 deg F
Trade Size:	1/2 in
