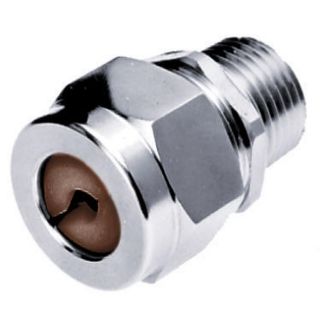

Picture of SHC1024ZP HWD
Actual Product May Vary From Image

SHC1024ZP HWD

Wiring Device-Kellems SHC1024ZP Form 2 Flexible Heavy Duty Standard Straight Cord Connector, 1/2 in Trade, 0.5 to 0.62 in Cable Openings, Steel, Machined/Zinc Plated
Manufacturer: Hubbell Wiring Device-Kellems
Manufacturer part number: SHC1024ZP
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
37 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$12.11

Product Details

Brand Name

Wiring Device-Kellems

Type

Flexible Heavy Duty Standard Straight

Description

Hubbell® has the broadest line and the widest choice of materials in the industry. NPT hub sizes from 1/4 to 3 in straight male end, 90 deg, 45 deg, female and underground feed connectors. They are available in your choice of aluminum, plated steel, nylon and stainless steel. Hubbell® nylon cord connectors resist most common industrial corrosives and provide highly effective pullout protection in a lightweight design. They are ideal for any application where weight, conductivity or corrosion may be an issue. They are available in NPT hub sizes from 1/4 to 1 in.
Wiring Device-Kellems Cord Connector, Form 2 Flexible Heavy Duty Standard Straight, Series: SHC, 1/2 in, Cable Openings: 0.5 to 0.62 in, Jacketed Cable, MNPT, Steel, Machined/Zinc Plated, Metallic, -30 to 225 deg F, 1.27 in Dia x 1.75 in L

Application

For use in wet locations when used with a listed nylon washer between box, fitting and hazardous locations

Standards

CSA Certified | RoHS Compliant | UL 514B

Features

  • Machined threads provide a strong positive seal, the tapered interior dome easily drives the bushing into the connector body
  • Lubricated neoprene bushing compresses easily for a liquidtight seal and added pull-out protection
  • Patented GOTCHA™ ring incorporates a split hinge design to prevent friction and provide strain relief, also color coded for sizing identification
  • Brown color code
  • 1.09 to 1.14 in recommended knockout hole
  • 0.55 in L thread
  • 0.64 in Dia throat
  • The zinc plated steel cord connectors offers the strength of steel and the corrosion resistance of zinc plating
  • Heavy duty connectors hold up to most manufacturing chemicals including acid solutions, solvents and other corrosive materials

Specifications

Cable Openings:0.5 to 0.62 in
Cable Type:Jacketed
Color:Brown/Metallic
Connection Type:MNPT
Country of Origin:CN
Dimensions:1.27 in Dia x 1.75 in L
Finish:Machined/Zinc Plated
Material:Steel
Number of Conductors:1
Series:SHC
Temperature Rating:-30 to 225 deg F
Trade Size:1/2 in
