SHC1030ZP HWD

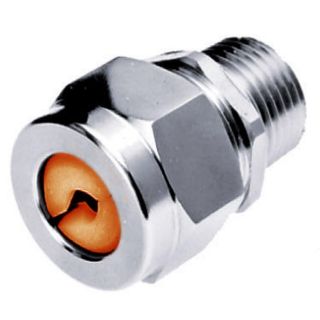

Picture of SHC1030ZP HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
SHC1030ZP
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$16.72 / EA

Description

Brand Name

Wiring Device-Kellems

Type

Form 2 Standard Straight

Description

Hubbell® has the broadest line and the widest choice of materials in the industry. NPT hub sizes from 1/4 to 3 in straight male end, 90 deg, 45 deg, female and underground feed connectors. They are available in your choice of aluminum, plated steel, nylon and stainless steel. Their machined steel nut and body allows for tightening the compression nut and NPT hub without worrying about stripping the threads. For larger size cord, NPT hub sizes 1 to 2 in, Hubbell® utilizes malleable iron connectors which provide excellent holding and liquid tight performance.
Wiring Device-Kellems, SHC1030ZP, Cord Connector, Form 2 Standard Straight, Series: SHC, 3/4 in Trade, 1 Conductors, Cable Openings: 0.13 to 0 .19 in, Jacketed Cable, MNPT Connection, Steel, Machined/Zinc Plated, Metallic, -30 to 225 deg F, 1.3 in Dia x 1.75 in L Dimensions

Application

For wet location when used with a listed nylon washer between box and fitting Applications

Standards

CSA Certified | NEC Class I, Division 2, Class II, Division 1/2, Class Ill, Division 1/2 Hazardous Locations | UL 514B | Title 46-Part 111 | UL94 V-2 Flammability Rating

Features

  • The zinc plated steel cord connectors offers the strength of steel and the corrosion resistance of zinc-plating
  • Heavy duty connectors hold up to most manufacturing chemicals including acid solutions, solvents and other corrosive materials
  • NEMA 4/4X/12/13 enclosure
  • Machined threads provide a strong positive seal, the tapered interior dome easily drives the bushing into the connector body
  • Lubricated neoprene bushing compresses easily for a liquidtight seal and added pull-out protection
  • Patented GOTCHA® ring incorporates a split hinge design to prevent friction and provide strain relief, also color-coded for sizing identification
  • Orange color code
  • 1.09 to 1.14 in recommended knockout hole
  • 0.55 in thread length
  • 0.64 in Dia throat
  • F2 form size

Specifications

Cable Openings:0.13 to 0 .19 in
Cable Type:Jacketed
Color:Metallic
Connection Type:MNPT
Country of Origin:US
Dimensions:1.3 in Dia x 1.75 in L
Finish:Machined/Zinc Plated
Material:Steel
Number of Conductors:1
Series:SHC
Temperature Rating:-30 to 225 deg F
Trade Size:3/4 in
