SHC1035SS HWD

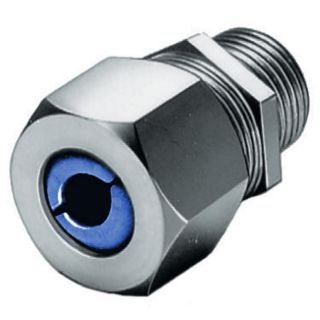

Name: SHC1035SS HWD
Brand: Hubbell Wiring Device-Kellems
SKU: SHC1035SS HWD
Price: 190.59 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

SHC1035SS

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$190.59 / EA

Description

Brand Name

Wiring Device-Kellems

Type

Form 3 Standard Duty Straight

Description

Stainless steel cord connectors provide superior strength and corrosion resistance for industrial and military applications. They are machined from 300 series stainless steel and come in 1/4 in through 1 in, NPT hub sizes.

Wiring Device-Kellems, SHC1035SS, Cord Connector, Form 3 Standard Duty Straight, Series: SHC, 3/4 in Trade, 1 Conductors, Cable Openings: 0.38 to 0.5 in, Jacketed Cable, MNPT Connection, Stainless Steel, Machined, Blue/Metallic, -30 to 225 deg F, 1.59 in Dia x 1.86 in L Dimensions

Application

For wet location when used with a listed nylon washer between box and fitting, hazardous location Applications

Standards

CSA Certified | RoHS Compliant | UL 514B | Title 46-Part 111 | UL94 V-2 Flammability Rating

Features

Provides superior strength and corrosion-resistance
Suitable for use in wet locations when used with a listed nylon washer between box and fitting
Machined threads provide a strong positive seal, the tapered interior dome easily drives the bushing into the connector body
Lubricated neoprene bushing compresses easily for a liquidtight seal and added pull-out protection
Patented GOTCHA™ ring incorporates a split hinge design to prevent friction and provide strain relief, also color coded for sizing identification
Blue color code
1.09 to 1.14 in recommended knockout hole
0.56 in L thread
0.81 in Dia throat

Specifications

Cable Openings:	0.38 to 0.5 in
Cable Type:	Jacketed
Color:	Blue/Metallic
Connection Type:	MNPT
Country of Origin:	US
Dimensions:	1.59 in Dia x 1.86 in L
Finish:	Machined
Material:	Stainless Steel
Number of Conductors:	1
Series:	SHC
Temperature Rating:	-30 to 225 deg F
Trade Size:	3/4 in
