SHC1041CR HWD

Product Details

Manufacturer part number:
SHC1041CR
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.

Description

Brand Name

Wiring Device-Kellems

Type

Form 4 Standard Straight

Alternate Supplier #

Grainger - 5D892

Description

Hubbell® has the broadest line and the widest choice of materials in the industry. NPT hub sizes from 1/4 to 3 in straight male end, 90 deg, 45 deg, female and underground feed connectors. They are available in your choice of aluminum, plated steel, nylon and stainless steel. Hubbell® nylon cord connectors resist most common industrial corrosives and provide highly effective pullout protection in a lightweight design. They are ideal for any application where weight, conductivity or corrosion may be an issue. They are available in NPT hub sizes from 1/4 to 1 in.

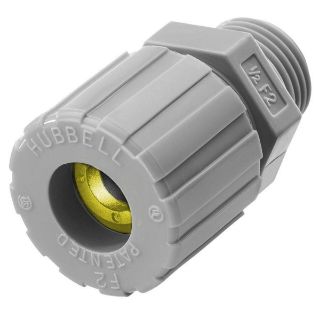

Wiring Device-Kellems, SHC1041CR, Cord Connector, Form 4 Standard Straight, Series: SHC, 1 in Trade, 1 Conductors, Cable Openings: 0.63 to 0.75 in, Jacketed Cable, MNPT Connection, Nylon, Smooth, Gray, -30 to 225 deg F, 1.88 in L x 1.88 in W x 2.45 in H Dimensions

Application

For wet location when used with a listed nylon washer between box and fitting Applications

Standards

CSA Certified | NEC Class I, Division 2, Class II, Division 1/2, Class Ill, Division 1/2 Hazardous Locations | RoHS Compliant | UL 514B | UL 94 V-2 Flammability Rating | Title 46-Part 111

Specifications

Cable Openings:0.63 to 0.75 in
Cable Type:Jacketed
Color:Gray
Connection Type:MNPT
Country of Origin:US
Dimensions:1.88 in L x 1.88 in W x 2.45 in H
Finish:Smooth
Material:Nylon
Number of Conductors:1
Series:SHC
Temperature Rating:-30 to 225 deg F
Trade Size:1 in
