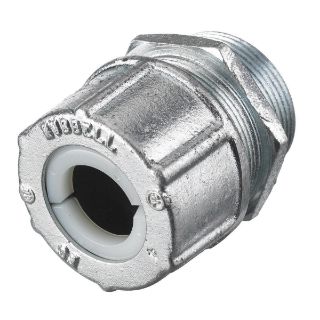

SHC1054ZP HWD

Name: SHC1054ZP HWD
Brand: Hubbell Wiring Device-Kellems
SKU: SHC1054ZP HWD
Price: 101.39 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

SHC1054ZP

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$101.39 / EA

Description

Brand Name

Wiring Device-Kellems

Type

Flexible Heavy Duty Standard Straight

Description

Wiring Device-Kellems Cord Connector, Flexible Heavy Duty Standard Straight, Series: SHC, 1-1/4 in, Cable Openings: 1.25 to 1.38 in, Jacketed Cable, MNPT, Steel, Machined/Zinc Plated, Metallic, -30 to 225 deg F, 2.4 in Dia x 2.4 in L

Application

For wet location when used with a listed nylon washer between box and fitting Applications

Standards

CSA Certified | NEC Class I, Division 2, Class II, Division 1/2, Class Ill, Division 1/2 Hazardous Locations | UL 514B

Features

The zinc plated steel cord connectors offers the strength of steel and the corrosion resistance of zinc-plating
These heavy duty connectors hold up to most manufacturing chemicals including acid solutions, solvents and other corrosive materials
Machined threads provide a strong positive seal, the tapered interior dome easily drives the bushing into the connector body
Lubricated neoprene bushing compresses easily for a liquidtight seal and added pull-out protection
Patented GOTCHA® ring incorporates a split hinge design to prevent friction and provide strain relief, also color-coded for sizing identification
1.72 to 1.77 in recommended knockout hole
0.7 in thread length
1.27 in Dia throat
F5 form size
NEMA 4/4X/12/13 enclosure
one-piece design with machined threads
Lock nuts sold separately

Specifications

Cable Openings:	1.25 to 1.38 in
Cable Type:	Jacketed
Color:	Metallic
Connection Type:	MNPT
Country of Origin:	US
Dimensions:	2.4 in Dia
Finish:	Machined/Zinc Plated
Material:	Malleable Iron
Number of Conductors:	1
Series:	SHC
Temperature Rating:	-30 to 225 deg F
Trade Size:	1-1/4 in
