SHC1061 HWD

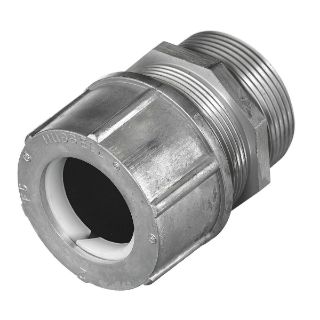

Picture of SHC1061 HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
SHC1061
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$99.70 / EA

Description

Brand Name

Wiring Device-Kellems

Type

Form 6 Flexible Standard Straight

Description

Hubbell® offers a full line of machined aluminum cord connectors in NPT hub sizes 1/4 in through 1 in and cast aluminum 1 to 3 in. They provide durable performance and a clean attractive look without adding unwanted weight.
Wiring Device-Kellems Cord Connector, Form 6 Flexible Standard Straight, Series: SHC, 1-1/2 in, Cable Openings: 1.38 to 1.5 in, Jacketed Cable, MNPT, Aluminum, Machined, Metallic, -30 to 225 deg F, 3 in Dia x 2.95 in L

Application

For wet location when used with a listed nylon washer between box and fitting, hazardous location Applications

Standards

CSA Certified | RoHS Compliant | UL 514B

Features

  • Machined threads provide a strong positive seal, the tapered interior dome easily drives the bushing into the connector body
  • Lubricated neoprene bushing compresses easily for a liquidtight seal and added pullout protection
  • Patented GOTCHA® ring incorporates a split hinge design to prevent friction and provide strain relief, also color-coded for sizing identification
  • NEMA 4/4X/12/13 enclosure

Specifications

Cable Openings:1.38 to 1.5 in
Cable Type:Jacketed
Color:Metallic
Connection Type:MNPT
Country of Origin:US
Dimensions:3 in Dia x 2.95 in L
Finish:Machined
Material:Aluminum
Number of Conductors:1
Series:SHC
Temperature Rating:-30 to 225 deg F
Trade Size:1-1/2 in
