SHC1091 HWD

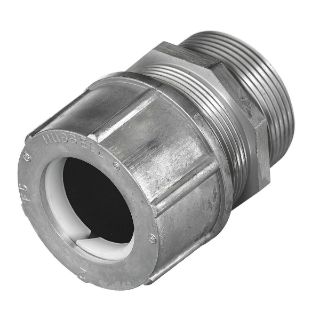

Picture of SHC1091 HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
SHC1091
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$177.00 / EA

Description

Brand Name

Wiring Device-Kellems

Type

Flexible Standard Straight

Description

Hubbell® offers a full line of machined aluminum cord connectors in NPT hub sizes 1/4 in through 1 in and cast aluminum 1 to 3 in. They provide durable performance and a clean attractive look without adding unwanted weight.
Wiring Device-Kellems Cord Connector, Form 7 Flexible Standard Straight, Series: SHC, 3 in, Cable Openings: 2.31 to 2.44 in, Jacketed Cable, MNPT, Aluminum, Machined, Metallic, -30 to 225 deg F, 3.85 in Dia x 4 in L

Application

For use in wet locations when used with a listed nylon washer between box, fitting and hazardous locations

Standards

CSA Certified | NEC Class I, Division 2, Class II, Division 1/2, Class Ill, Division 1/2 Hazardous Locations | RoHS Compliant | UL 514B

Features

  • Machined threads provide a strong positive seal, the tapered interior dome easily drives the bushing into the connector body
  • Lubricated neoprene bushing compresses easily for a liquidtight seal and added pull-out protection
  • Patented GOTCHA™ ring incorporates a split hinge design to prevent friction and provide strain relief, also color coded for sizing identification
  • 3.58 to 3.63 in recommended knockout hole
  • 1.3 in L thread
  • 2.54 in Dia throat

Specifications

Cable Openings:2.31 to 2.44 in
Cable Type:Jacketed
Color:Metallic
Connection Type:MNPT
Country of Origin:US
Dimensions:3.85 in Dia x 4 in L
Finish:Machined
Material:Aluminum
Number of Conductors:1
Series:SHC
Temperature Rating:-30 to 225 deg F
Trade Size:3 in
