SHCM201024 HWD

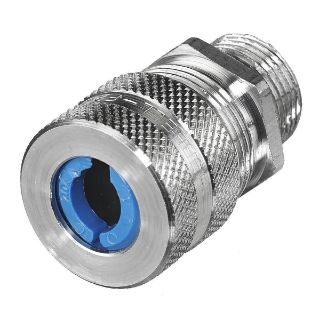

Picture of SHCM201024 HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
SHCM201024
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$11.33 / EA

Description

Brand Name

Wiring Device-Kellems

Type

Flexible Metric Standard Straight

Description

Hubbell® has the broadest line and the widest choice of materials in the industry. NPT hub sizes from 1/4 to 3 in straight male end, 90 deg, 45 deg, female and underground feed connectors. They are available in your choice of aluminum, plated steel, nylon and stainless steel.
Wiring Device-Kellems Cord Connector, Form 2 Flexible Metric Standard Straight, Series: SHC, M20, Cable Openings: 0.5 to 0.62 in, Jacketed Cable, Male, Aluminum, Machined, Metallic, -30 to 225 deg F

Application

For use in wet locations when used with a listed nylon washer between box and fitting

Standards

CSA Certified | RoHS Compliant | UL 514B

Features

  • Machined threads provide a strong positive seal, the tapered interior dome easily drives the bushing into the connector body
  • Connector body is a 1-piece design with machined threads
  • Lubricated neoprene bushing compresses easily for a liquidtight seal and added pull-out protection
  • Patented GOTCHA™ ring incorporates a split hinge design to prevent friction and provide strain relief, also color coded for sizing identification
  • Brown color code

Specifications

Cable Openings:0.5 to 0.62 in
Cable Type:Jacketed
Color:Metallic
Connection Type:FNPT
Country of Origin:US
Finish:Machined
Material:Aluminum
Number of Conductors:1
Series:SHC
Temperature Rating:-30 to 225 deg F
Trade Size:M20
