SK 1 1/4 MSG

Name: SK 1 1/4 MSG
Brand: Martin Sprocket & Gear
SKU: SK 1 1/4 MSG
Price: 45.97 USD
Availability: InStock

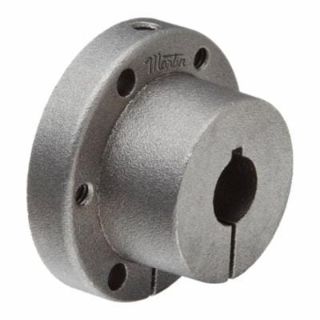

Martin SK 1 1/4 Standard QD Bushing, 1-1/4 in Dia Bore, 2.812 in Dia Barrel, 3-7/8 in Dia Flange, 1.938 in OAL, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: SK 1 1/4

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
1	2	2
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$45.97

Qty:

Product Details

Brand Name

Martin

Type

Standard

Description

Martin QD Bushing, Standard, 1-1/4 in Bore Dia, 2.812 in Barrel Dia, 4-1/2 in Hub Dia, 3.312 in Bolt Circle, 3-7/8 in Flange Dia, 0.563 in Flange Thickness, 3 Bolt Holes, 5/16-18 x 2 in Screw, 7000 in-lb, 1.938 in Overall Length, 1/8 x 1/4 in Keyway, Steel

Features

Size SK bushing
QD (quick detachable) bushings are designed for conventional mounting or reverse mounting
These bushings have a flange

Specifications

Barrel Diameter:	2.812 in
Bolt Circle Diameter:	3.312 in
Bore Diameter:	1-1/4 in
Country of Origin:	US
Flange Diameter:	3-7/8 in
Flange Thickness:	0.563 in
Hub Diameter:	4-1/2 in
Keyway Size:	1/8 x 1/4 in
Material:	Steel
Number of Bolt Holes:	3
Overall Length:	1.938 in
Screw Size:	5/16-18 x 2 in
Torque Rating:	7000 in-lb
