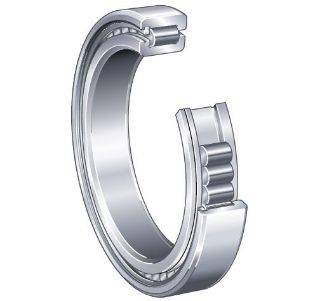

SL182936-B-XL INA

Cylindrical roller bearings with snap-ring grooves are full complement, double-row units comprising solid outer and inner rings with ribs, rib-guided cylindrical rollers and sealing rings. The outer rings have snap-ring grooves for retaining rings. The inner rings are axially split, 1 mm wider than the outer rings and held together by a rolled-in steel strip. Locating bearings cylindrical roller bearings with snap-ring grooves are locating bearings. These bearings are very rigid and can support axial forces in both directions as well as high radial forces. Due to their full complement design, they feature the maximum possible number of rolling elements and therefore have the maximum basic dynamic and static load ratings. Due to the kinematic conditions, however, they do not achieve the high speeds that are possible when using cylindrical roller bearings with cage. Bearings for cable sheaves Due to the grooves in the outer rings, the bearing rings can easily be axially located. The bearings are therefore highly suitable for cable sheave bearing arrangements.

INA Cylindrical Roller Bearing, 180 mm Bore, 250 mm OD, 1 Row, 42 mm Width, 680000 N Load, 1500 rpm Maximum
