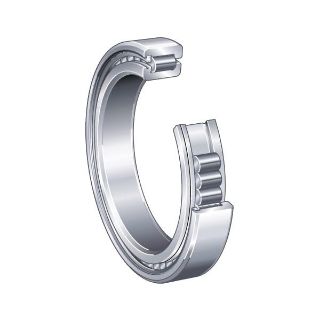

SL182944-B-XL INA

In these bearings, the outer ring has one rigid rib and the inner ring has two rigid ribs. As a result, axial displacements of the shaft relative to the housing can be compensated within certain limits. The maximum axial displacement s is given in the product tables. Since the axial motion occurs without constraint in the bearing itself, this is practically free from friction with a rotating bearing. Cylindrical roller bearings of this design are used as semi-locating bearings, i.e. they can guide the shaft axially in one direction, while they act in the opposite direction as non-locating bearings.

INA Cylindrical Roller Bearing, Full Complement Semi-Fixed, Series: SL1829, 220 mm Bore, 300 mm OD, 1 Rows, 48 mm Width, 1030000 N Load, 1210 rpm Maximum, -30 to 120 deg C
